Manual Drive Mode Selection, Function (With Touch Shift): Notes

Transmission with touch shift.

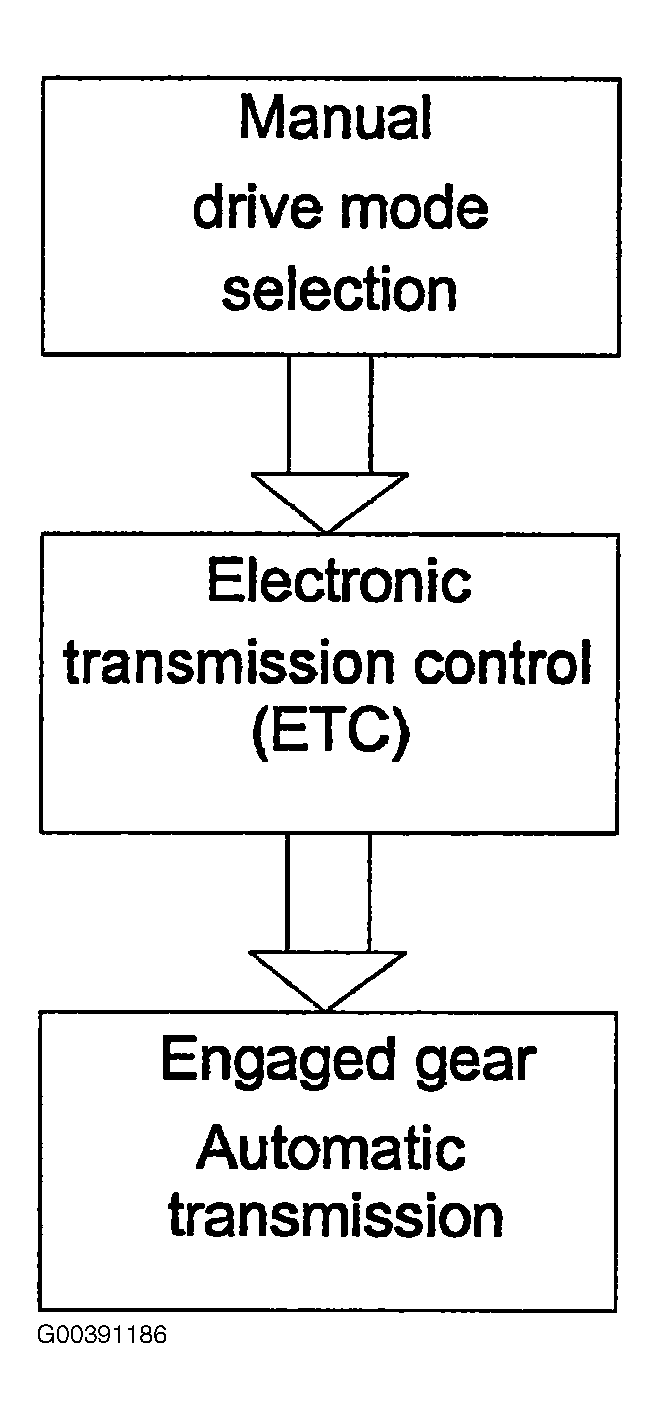

Fig 1: Manual Drive Mode Selection, Function

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Operation

With the selector lever on the floor shift it is possible to adapt the automatic gearshift sequence to suit specific operating conditions. See Fig 1. Although the selector lever position can be changed in the forward gears while driving, the electronic transmission control (ETC) prevents over-revving of the engine.

1. Floor Shift, Location/Task/Design/Function

   See FLOOR SHIFT, LOCATION/TASK/DESIGN/FUNCTION .
2. Shift Detent Mechanism, Location/Task/Design/Function

   See SHIFT DETENT MECHANISM, LOCATION/TASK/DESIGN/FUNCTION
3. Location/Task/Design/Function Of R/P Lock

   See LOCATION/TASK/DESIGN/FUNCTION OF R/P LOCK .
4. Position Display, Location/Task

   See POSITION DISPLAY, LOCATION/TASK .
5. ETC Control Module, Location/Task

   See ETC CONTROL UNIT, LOCATION/TASK .
6. Control Module For Electronic Selector Lever Module, Location/Task/Design

   See .
