ME-SFI control module position - GF07.61-P-5000-01GS
Model 170.444/49

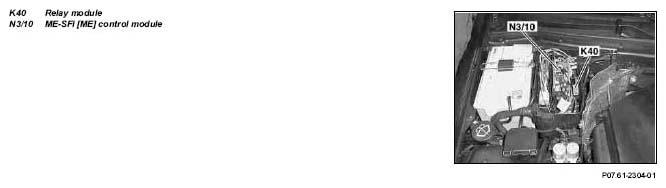

Fig 1: Identifying ME-SFI Control Module Position
