Optical waveguide interface, location/task/design/function - GF82.70-P-3106B: Notes
MODELS 215, 220 up to 31.8.02 with CODE (316) MB GSM cellular telephone (D2B)

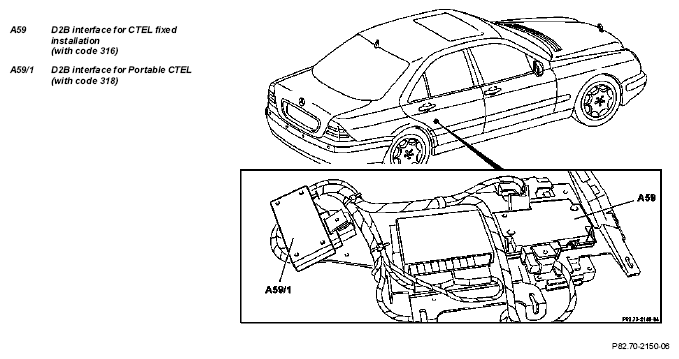

Shown on Model 220
| Optical waveguide interface, position | with code 316, 318 up to 31.8.02 | ||
| Optical waveguide interface, task | The D2B interface for fixed installation CTEL (A59) is needed for connecting the CTEL transmitter / receiver (A35) to the Digital Data Bus (D2B). For dynamic route guidance (code 815): Passing on the TMC traffic data received via the telephone to the traffic data recorder (A2/43) |
||
| Optical waveguide interface, design |
|
||
| Optical waveguide interface, function | with code 316 up to 31.8.02 | GF82.70-P-3106-04B |
