Multicontour seat control module, location/task/design/function - GF91.25-P-2101S: Notes
MODELS 215, 220 up to 31.8.02 with CODE (404b) Multicontour backrest driver seat
MODELS 215, 220 up to 31.8.02 with CODE (405b) Multicontour backrest passenger seat
MODEL 220 up to 31.8.02 with CODE (224c) Electrically adjustable rear single seats, with seat ventilation, seat heater and memory package

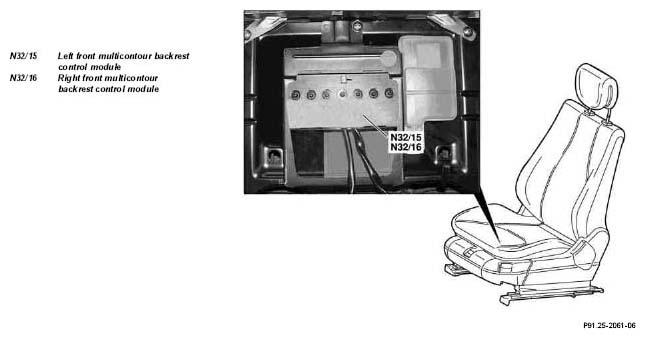

Location left front multicontour backrest control module/right front multicontour backrest control module
Fig 1: Identifying Left Front Multicontour Backrest Control Module And Right Front Multicontour Backrest Control Module

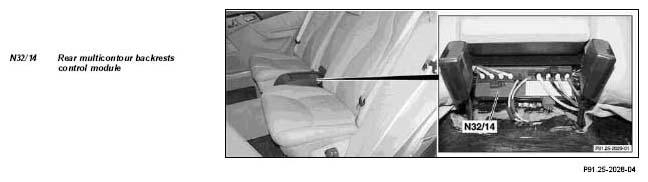

Location on model 220 only
Rear multicontour backrests control module
| Multicontour seat control module, location | The left front multicontour backrest control module (N32/15)/the right front multicontour backrest control module (N32/16) is located under the respective seat. The rear multicontour backrest control module (N32/14) is located under the right half of the rear seat bench. | ||
| Multicontour seat control module, task | GF91.25-P-2101-02S | ||
| Multicontour seat control module, design | Apart from the actuation/evaluation electronics, pressure control valves (one for each air cushion) are located in all control modules of the multicontour backrests. The air cushions are filled and emptied via these pressure control valves. | ||
| Multicontour seat control module, function | The control module reads in the switch conditions of the switch groups of the multicontour backrests, detects the air pressure in the air cushions via piezoresistive pressure sensors, actuates the pressure control valves and receives/sends data from/to the respective seat control module. | ||
| GF54.30-P-3017A |
