Wheel Alignment Specifications

WHEEL ALIGNMENT SPECIFICATIONS

Application Specification Range
Caster (1)(2)
Except USA See Fig 4 ....
USA See Fig 5 ....
Front Axle Camber (3) See Fig 1 ....
Front Axle Toe-In (All) 0° 32' +/-10'
Front Axle Toe-Out On Turns (4)
Except USA 1° 41' +/-30
USA 1° 38' +/-30
Rear Axle Camber (5)(6)
Except USA See Fig 3 ....
USA See Fig 3 ....
Rear Axle Toe-In (7)
Except USA See Fig 2 ....
USA See Fig 2 ....
(1) Check caster, assign tabular value. Refer to illustration and match with a value in table.
(2) Check permissible difference in front caster between right and left side of vehicle.
(3) Measure front axle riding height. Check camber, assign a value. Refer to appropriate illustration.
(4) Toe-Out On Turns with inside wheel turned through 20 degrees.
(5) Rear Axle Camber and Caster, adjustment information is not available.
(6) Specifications given as information only.
(7) Check Toe-in at rear axle, assign tabular value. Refer to illustration and match with a value in table

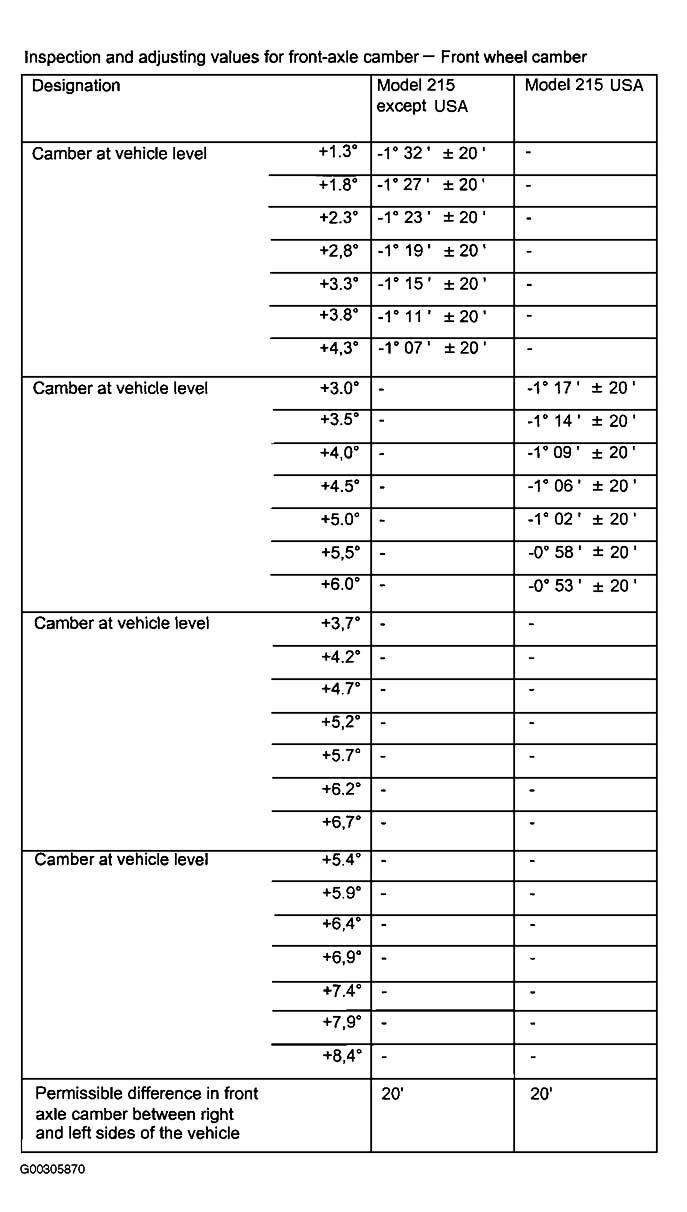

Fig 1: Check & Adjustment Values For Front Axle Camber At Vehicle Level
G00305870Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

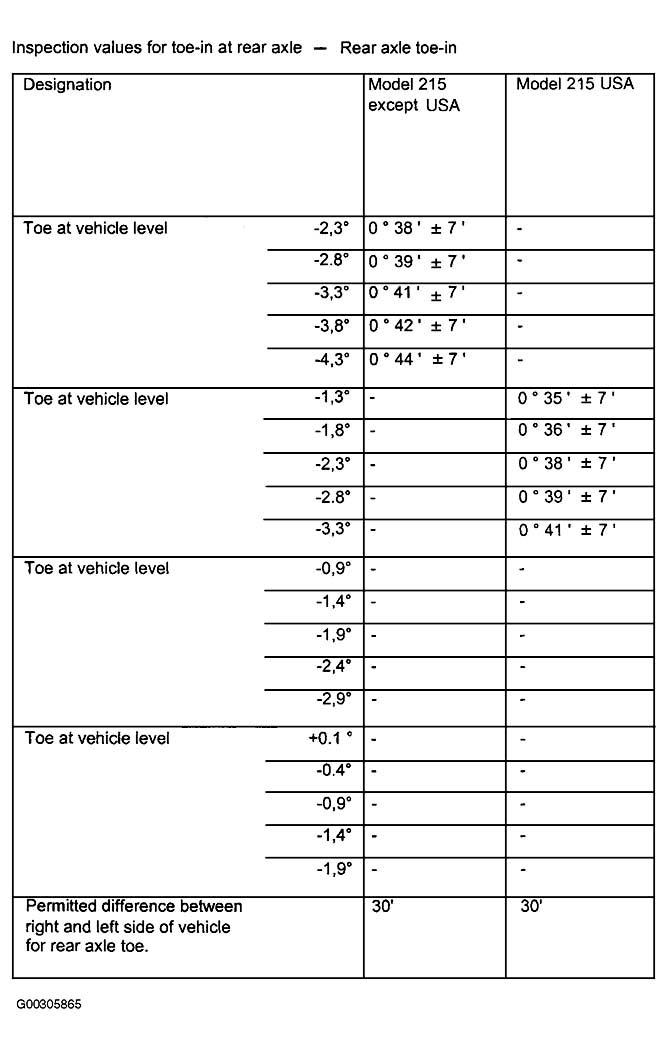

Fig 2: Check & Adjustment Values For Toe-In At Rear Axle At Vehicle Level
G00305865Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

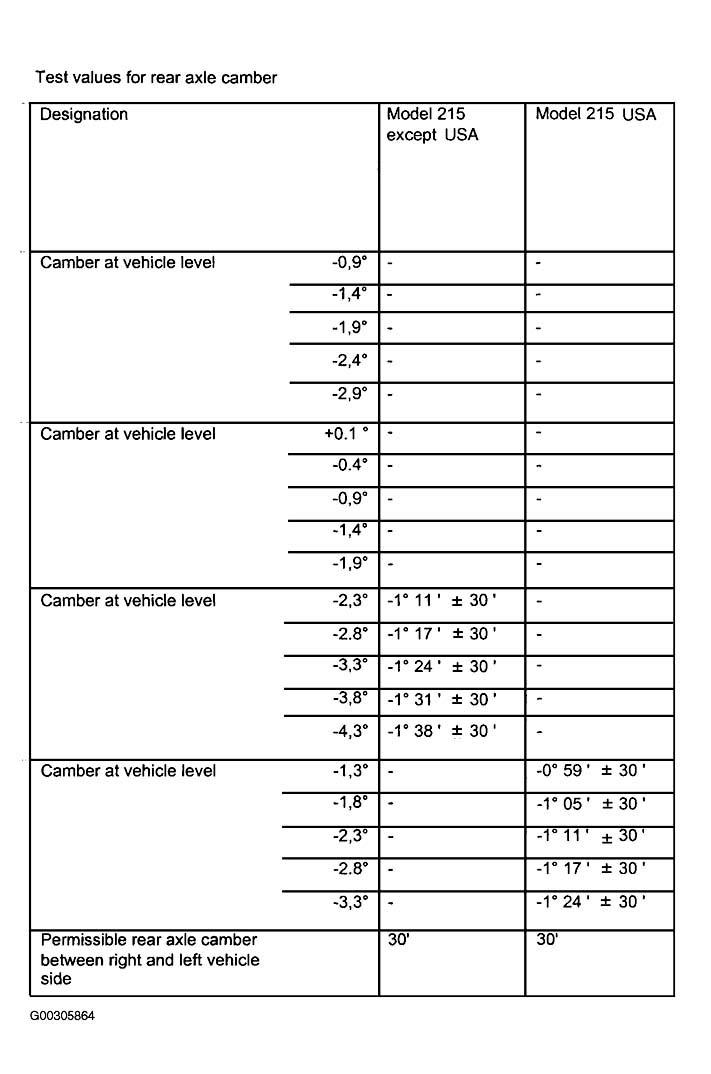

Fig 3: Check & Adjustment Values For Rear Axle Camber At Vehicle Level
G00305864Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

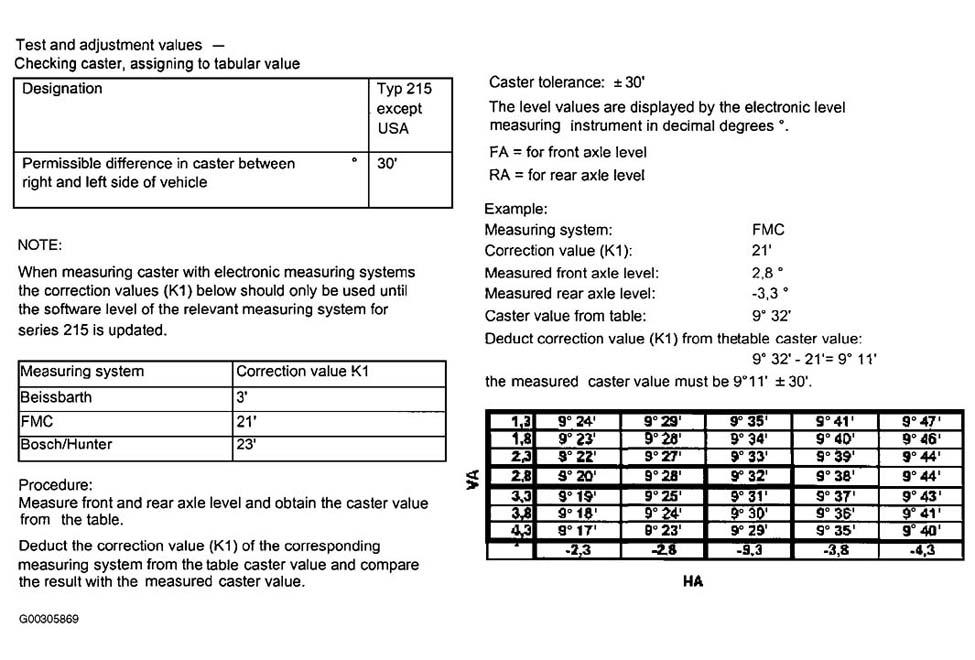

Fig 4: Check & Adjustment Values For Front Caster & Assign Tabular Value (Except USA)
G00305869Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

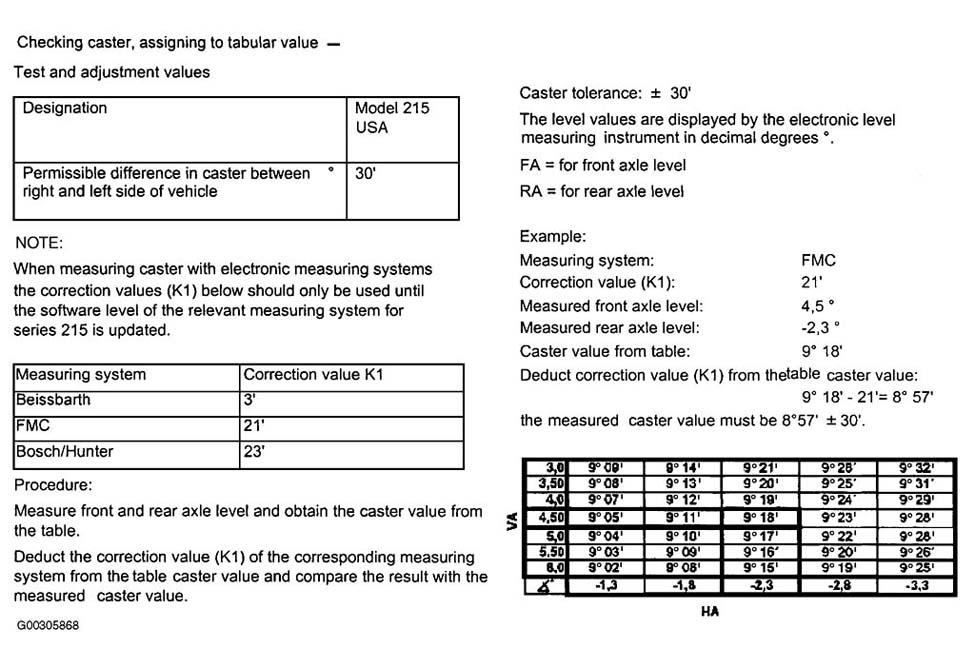

Fig 5: Check & Adjustment Values For Front Caster & Assign Tabular Value (USA)
G00305868Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
