Splash bowl position/task/function - GF47.10-P-3101E: Notes

MODEL 202.0, 208

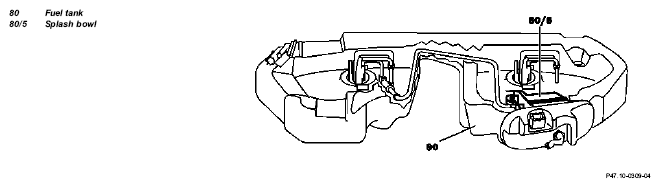

Fig 1: Identifying Fuel Tank And Splash Bowl

	Position	The splash bowl (80/5) is welded into the right chamber of the fuel tank (80)
	Task	It acts as a reserve tank when cornering with a low level of fuel in the fuel tank and prevents the fuel pump drawing in air
	Function	Splash bowl	GF47.10-P-3101-01H
