Suction spray pump position/task/design/function - GF47.10-P-3102E
MODEL 202.020 /080, 208.335 with ENGINE 111.945
MODEL 202.022 with ENGINE 111.961
MODEL 202.023 /083 with ENGINE 111.974
MODEL 202.024 with ENGINE 111.975
MODEL 202.025 with ENGINE 111.944
MODEL 202.028 with ENGINE 104.941
MODEL 202.018 /078 with ENGINE 111.921
MODEL 202 with ENGINE 112
MODEL 208 with ENGINE 112, 113
| Suction spray pump position | The suction spray pumps are located at the lowest point of the left chamber of the fuel tank and at the splash bowl in the right chamber of the fuel tank | ||
| Suction spray pump task | Drawing fuel out of the chambers of the fuel tank into the splash bowl (right chamber of fuel tank) | ||

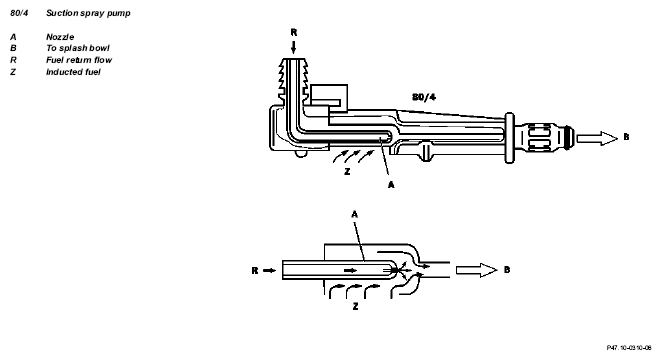

| Suction spray pump function | The nozzle (A) in the suction spray pump (80/4) accelerates the fuel flowing back. The fuel jet generates a suction effect and entrains the fuel which is located around the nozzle (A) out of the left chamber of the fuel tank with it into the feed line (B) and on to the splash bowl |
