On-Line SCN Coding Instructions Using XENTRY Flash. (58.00/144C)

Publication date: 2007-12-14
Reference number: 58.00/144C
Supersedes refnos: 58.00/144A, 58.00/144B

ON-LINE SCN CODING INSTRUCTIONS USING XENTRY FLASH.

TECHNICAL SERVICE BULLETIN

Reference Number(s): S-B-58.00/144C, Date of Issue: December 14, 2007

MERCEDES-BENZ:	Mercedes-Benz Models
GROUP:	58 - Tools

Superceded Bulletin(s): S-B-58.00/144B, Date of Issue: July 24, 2006

SUBJECT

ON-LINE SCN CODING INSTRUCTIONS USING XENTRY FLASH.

NOTE: Information Only.

A. INTRODUCTION

This bulletin provides instructions on how to use the On-Line SCN Coding with the new Xentry Flash function of the STAR Diagnosis System which will be available with the release of DAS 11/07.

On-Line SCN Coding with Xentry Flash is designed to streamline the SCN Coding process by eliminating the need for a technician to transfer between Star Browser and DAS on the SDS.

On-Line SCN Coding can only be performed using a STAR Diagnosis System that has been networked and has access to the internet. For information on networking of the STAR Diagnosis System please refer to documents posting on STAR TekInfo under the Systems & Administration/SDS Tab titled: Phase (1,2,3) Letter Online SCN Coding.

B. OBTAINING ONLINE SCN CODING USER IDs

NOTE: Each technician must have their own User ID in order to perform On-line SCN Coding, User IDs and passwords are not to be shared.

To obtain an On-line SCN Coding User ID:

New User IDs must be obtained by filling out and signing the SCN Coding User ID Request Form and faxing the form to 1-201-573-4335. The new User ID will be emailed to the email address of the Service Manager provided by the requestor on the form.

NOTE: Passwords can be reset by the NetStar Helpdesk - 1-888-9 NetStar

The NetStar Helpdesk cannot grant new User IDs.

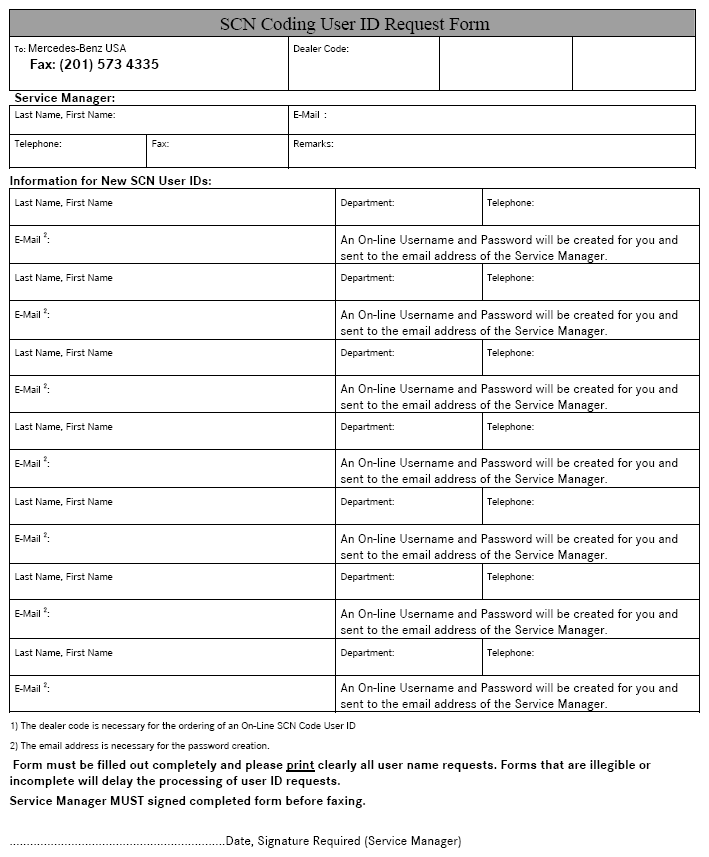

Fig 1: SCN Coding User ID Request Form

C. PERFORMING ON-LINE SCN CODING

NOTE: The instructional example shown in this bulletin depicts the SCN/CVN Coding of an Engine Control Module. The procedure for Transmission Control Modules and Instrument Clusters is identical in function however the initial menu paths will be different.

For Engine Control Modules, follow menu path: Control Units/Drive/ME/Control Unit Adaptations/Variant Coding
For Transmission Control Modules, follow menu path: Control Units/Drive/Transmission/Control Unit Adaptations
For Instrument Clusters, follow menu path: Control Units/Information and Communication/Instrument Cluster/Control Unit Adaptations

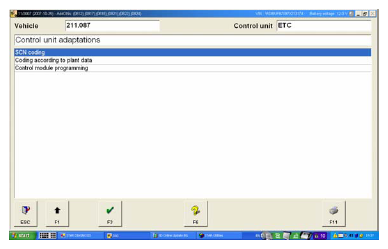

Select SCN Coding, Press F3 (Fig 2)

Fig 2: STAR Diagnosis Display - Select SCN Coding

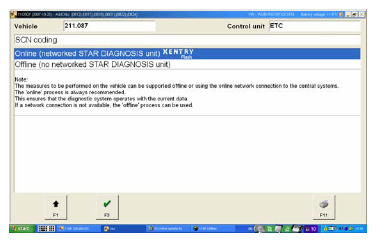

Select Online (networked diagnostic system) Xentry Flash (Fig 3)

Fig 3: STAR Diagnosis Display - Select Xentry Flash

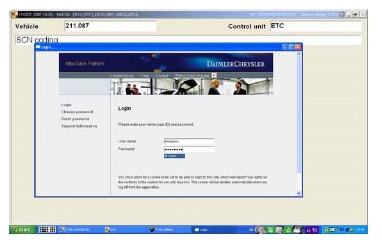

At this screen you would use your SCN user ID to log in (Fig 4).

Fig 4: STAR Diagnosis Display - User Log In

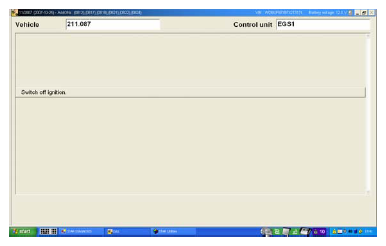

When prompted, turn off ignition as indicated (Fig 5).

Fig 5: STAR Diagnosis Display - Turn Off Ignition

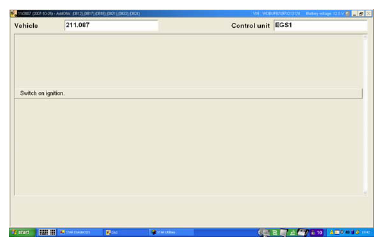

When prompted, turn ignition on as indicated (Fig 6)

Fig 6: STAR Diagnosis Display - Turn Ignition On

NOTE: Please wait while the CVN redocumentation process is performed in the back round.

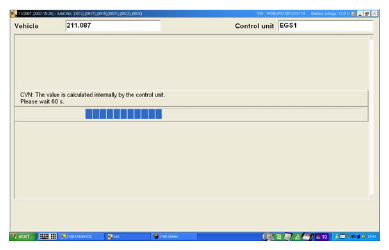

Fig 7: STAR Diagnosis Display - CVN Redocumentation Process

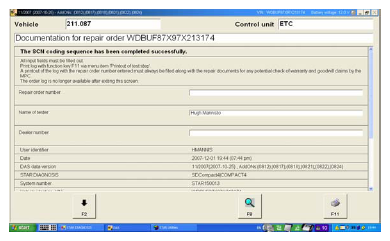

Select F11 and print out your "Documentation for repair order" for proof of SCN/CVN coding (Fig 8)

Fig 8: STAR Diagnosis Display - Documentation For Repair Order
This completes the SCN coding process for ME and ETC control modules.
