Roll bar deployment solenoid, location/task/design/function - GF91.59-P-2104KA: Notes

Models 208.435 /444 /445 /447 /448 /465 /470

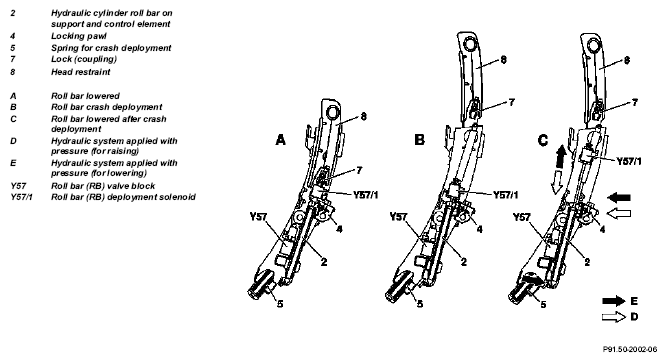

Fig 1: Identifying Roll Bar Deployment Solenoid Design, Function & Location Of Components

	Roll bar deployment solenoid, location		GF91.59-P-2104-01KA
	Roll bar deployment solenoid, task	Unlocking roll bar.
	Roll bar deployment solenoid, design	Solenoid.
	Roll bar deployment solenoid, function	The roll bar (RB)/soft top operation control module (N52)  energizes in the event of an accident or a critical driving situation the roll bar deployment solenoids (Y57/1)  . After this the lock (7), which holds the roll bar in its neutral position, opens. The roll bar is then raised in a fraction of a second by the pretensioned springs (5).
