Operating, display and control unit, location/task/design/function - GF82.85-P-3114QMU: Notes

MODEL 209.3 /4 as of 1.6.04 with CODE (530) COMAND APS USA (with navigation system)

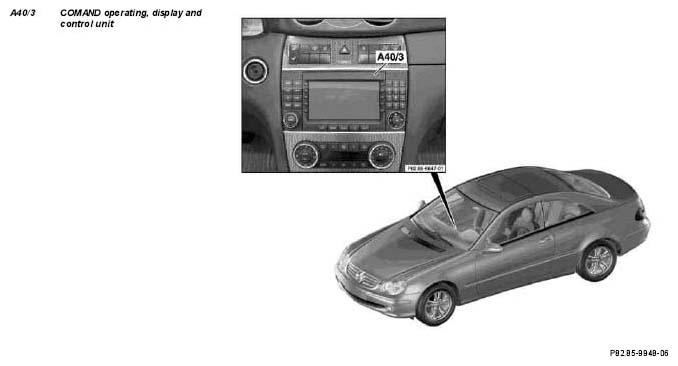

Fig 1: Operating, Display And Control Unit Location - Model 209 With Code (530)
G04959869
  Operating, display unit with control unit, location The COMAND operating, display and control unit (A40/3n1) is in the center console.
  Operating, display and control unit, task   GF82.85-P-3130-02QMU
  Operating, display unit with control unit, design   GF82.85-P-3114-07QMU
  Operating, display unit with control unit, function   GF82.85-P-3114-08QMU
