Interior motion sensor transmitter/receiver, location/task/design/function - GF80.50-P-4104QA
MODEL 209.4 with CODE (551a) Anti-theft alarm system (ATA) with CODE (882b) Interior motion sensor (only with anti-theft alarm system) except CODE (810) Sound system

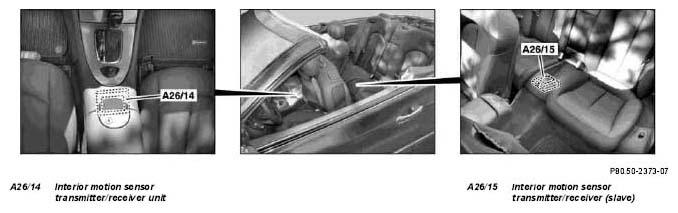

| interior motion sensor transmitter/receiver, location | The interior motion sensor transmitter/receiver (A26/14) is located in the front center stowage compartment. Die interior motion sensor transmitter/receiver (Slave) (A26/15) is located in the rear stowage shell |
||
| Interior motion sensor transmitter/receiver, purpose | The interior motion sensor transmitter/receiver (A26/14) and the interior motion sensor transmitter/receiver (slave) (A26/15) operate as motion detector and sense motions in the passenger compartment. | ||
| Interior motion sensor transmitter/receiver, body | The interior motion sensor transmitter/receiver (A26/14) and the interior motion sensor transmitter/receiver (slave) (A26/15) include an ultrasonic sensor and receiver as well as a microcontroller with data interface. | ||
| Interior motion sensor transmitter/receiver, function | GF80.50-P-4104-02Q |
