Fuel tank, location/design/function - GF47.10-P-3000P: Notes
MODEL 203 with ENGINE 111.951 /955, 112.912 /916 /946 /953 /961
MODEL 209 with ENGINE 112.912 /955, 113.968

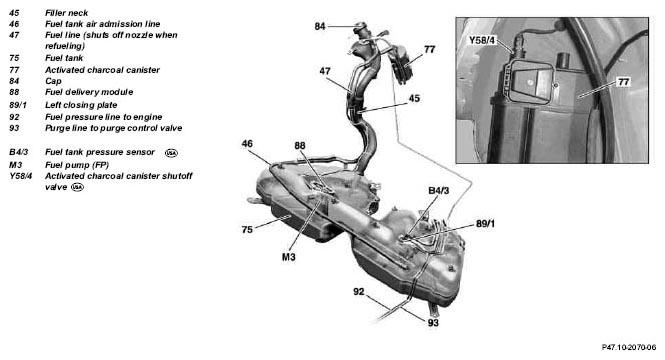

Fig 1: Identifying Fuel Tank Components - Model 203 With Engine 111.951 /955, 112.912 /916 /946 /953 /961
| Fuel tank position | The fuel tank is positioned at the frame floor ahead of the rear axle because of the through-loading facility (from trunk into passenger compartment). | ||
| Fuel tank design | The fuel tank (75) is split into two chambers because of the "U"-shaped recess. The chambers are connected to each other. | ||
| Fuel tank function | GF47.10-P-3000-01P |
