O2 sensors, location - GF07.04-P-4103-02GT

Model 203, 209

Engine 111.951/55

Low emission EURO3

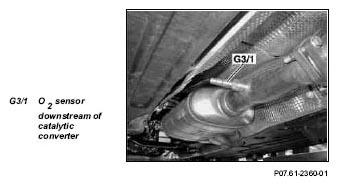

Fig 1: Identifying O2 Sensors - Engine 111.951/55 Low Emission EURO3 (1 Of 2)

Engine 111.951/55

Low emission EURO3

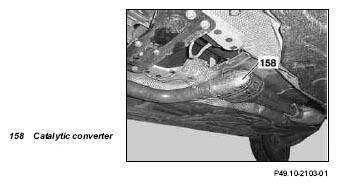

Fig 2: Identifying O2 Sensors - Engine 111.951/55 Low Emission EURO3 (2 Of 2)

Engine 111.951 low emission D4

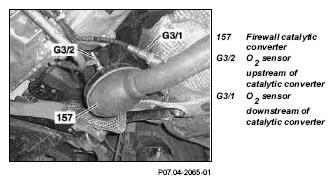

Fig 3: Identifying O2 Sensors - Engine 111.951 Low Emission D4 (1 Of 2)

Engine 111.951 low emission D4

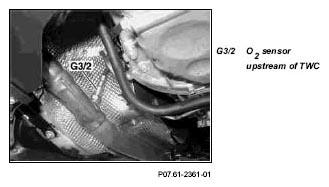

Fig 4: Identifying O2 Sensors - Engine 111.951 Low Emission D4 (2 Of 2)

Engine 112

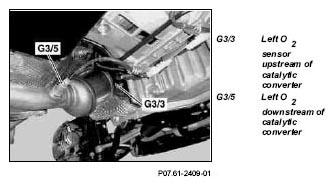

Fig 5: Identifying Left O2 Sensors - Engine 112

Engine 112

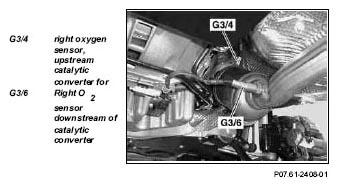

Fig 6: Identifying Right O2 Sensors - Engine 112

Model 209 with engines 112, 113

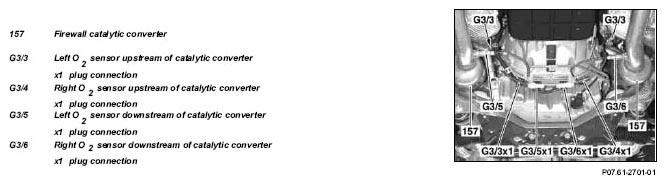

Fig 7: Identifying Left And Right O2 Sensors - Model 209 With Engines 112, 113
