Check & Adjust Front Toe Angle: Adjustments

For check and adjustment procedure, see Fig 1 and Fig 2 .

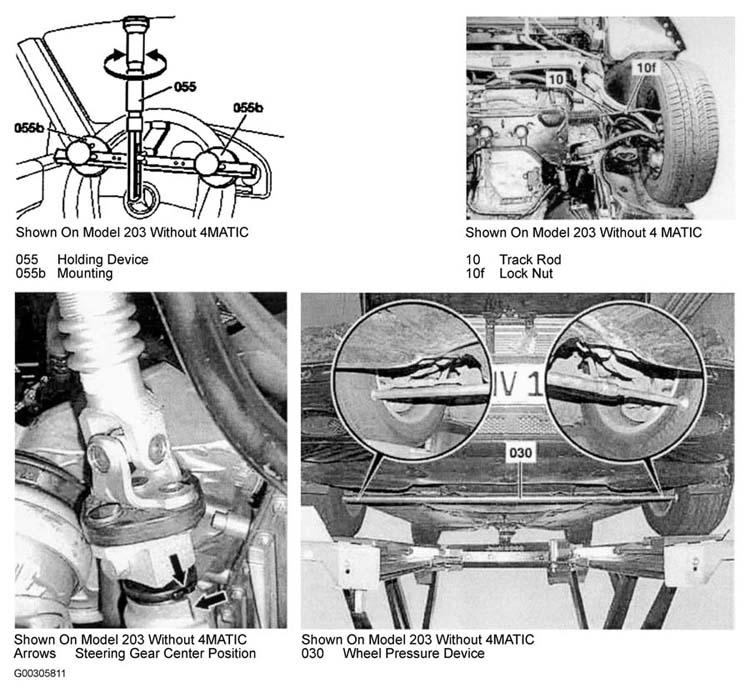

Fig 1: Check & Adjust Front Toe Angle Procedure (1 Of 2)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

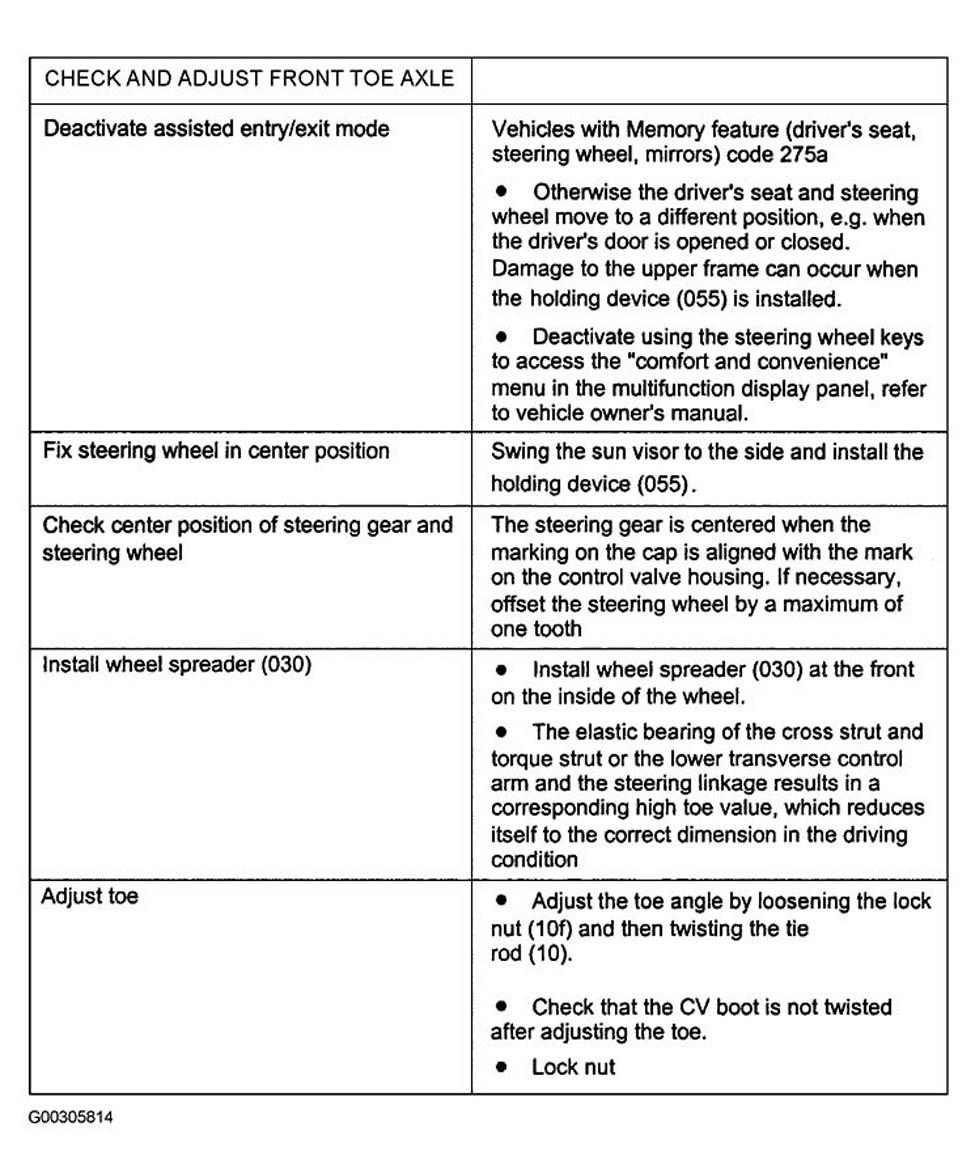

Fig 2: Check & Adjust Front Toe Angle Procedure (2 Of 2)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
