Wheel Alignment Specifications

WHEEL ALIGNMENT SPECIFICATIONS

Application

Specification

Range

Caster ⁽¹⁾

....

Front Axle Camber ⁽²⁾

....

Front Axle Toe-In

0° 20'

+/-10'

Front Axle Toe-Out On Turns ⁽³⁾

Elegance/Avantgarde

1° 34'

+/-30

Elegance/Avantgarde With MB Sports Suspension

1° 40'

+/-30

Rear Axle Camber ⁽⁴⁾⁽⁵⁾

....

Rear Axle Toe-In

0° 33'

+/-7'

⁽¹⁾	Check caster, assign tabular value. Refer to illustration and match with a value in table.

⁽²⁾	Measure front axle riding height. Check camber, assign a value. Refer to appropriate illustration.

⁽³⁾	Toe-Out On Turns with inside wheel turned through 20 degrees.

⁽⁴⁾	Rear Axle Camber and Caster, adjustment information is not available.

⁽⁵⁾	Specifications given as information only.

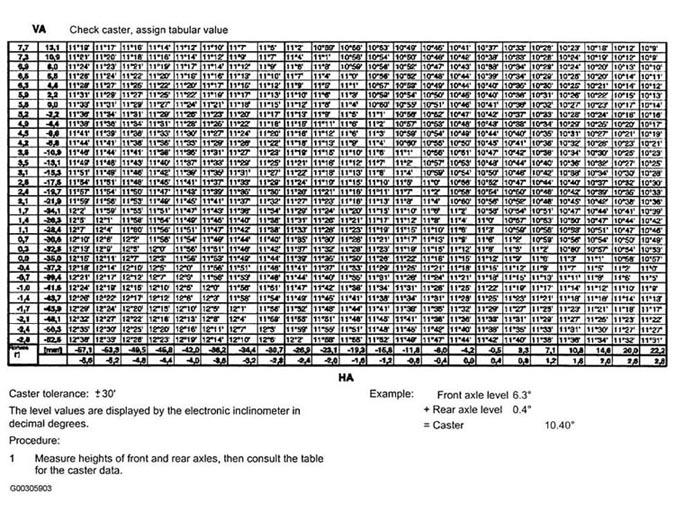

Fig 1: Test Value For Front Wheel Caster - Assign Tabular Value

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

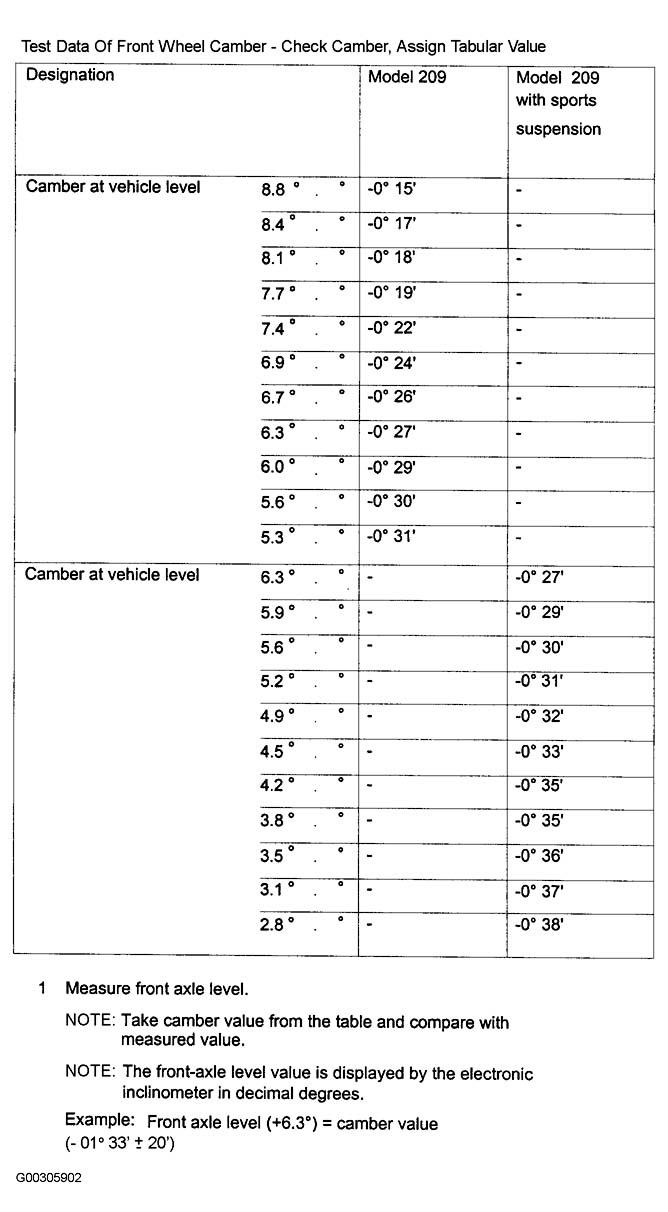

Fig 2: Test Value For Front Wheel Camber - Assign Tabular Value

Courtesy of MERCEDES-BENZ CO., INC.

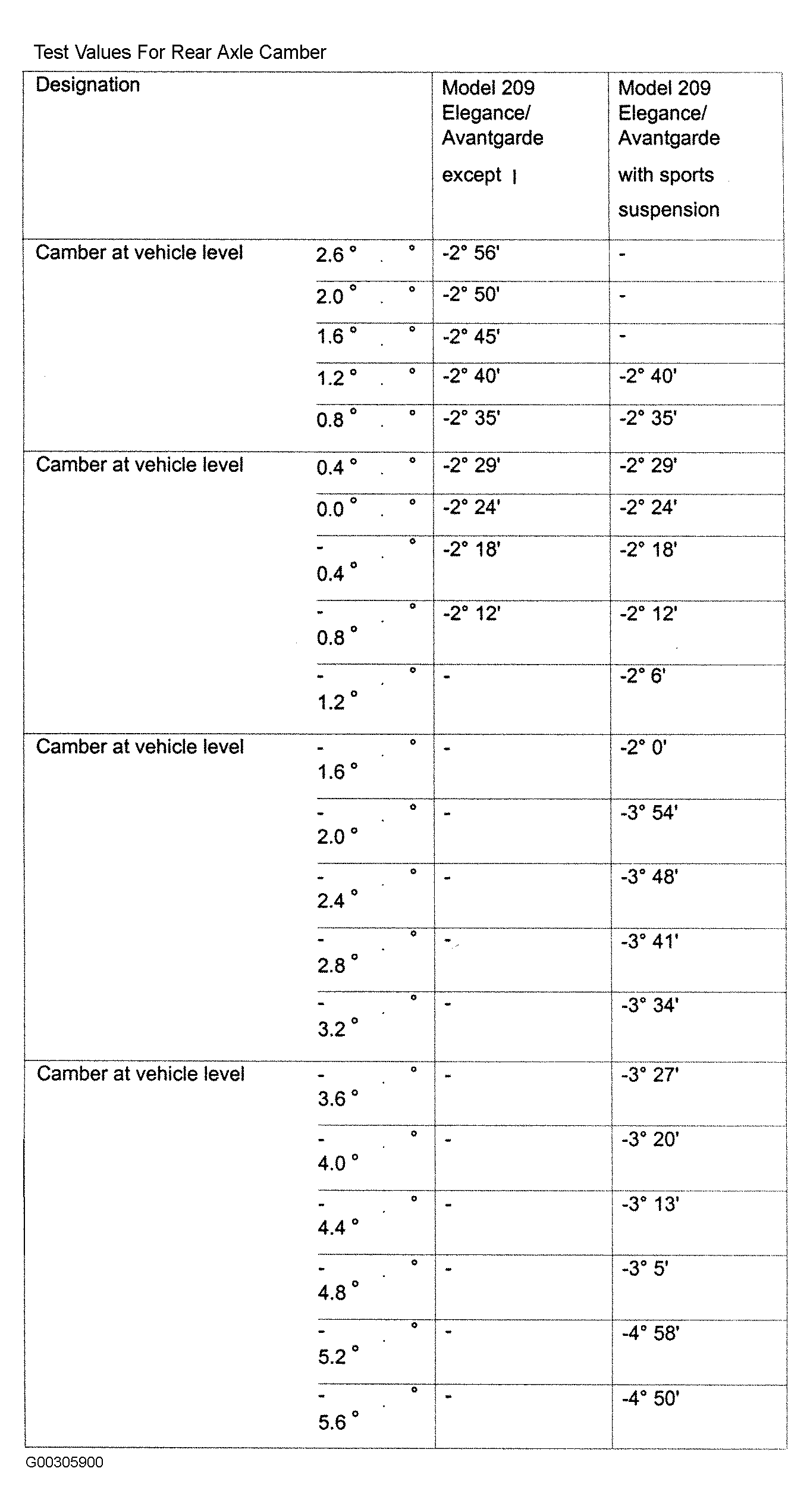

Fig 3: Test Values For Rear Axle Camber (All)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
