Remove/install O2 sensor - AR07.04-P-0080T

ENGINE 648.961 in MODEL 211.026 /226 with CODE (494) USA version

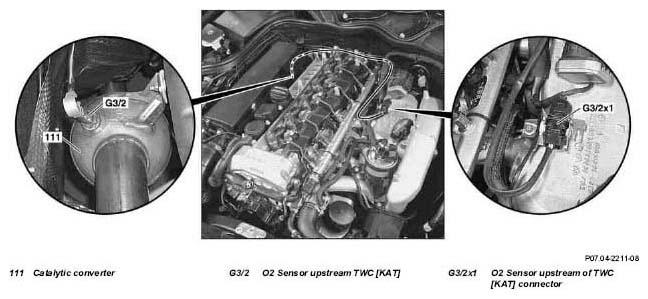

Fig 1: Identifying O2 Sensor Upstream And Catalytic Converter

MODIFICATION NOTES

6.8.05

O2 Sensor to catalytic converter

Engine 648.961 with code 494

	Remove/install
	Risk of injury to skin and eyes caused by handling hot or glowing objects.	Wear protective gloves, protective clothing and safety glasses.	AS00.00-Z-0002-01A
	Notes on self-locking nuts and bolts		AH00.00-N-0001-01A
1	Open engine hood and raise to vertical position		AR88.40-P-1000T
2	Remove trim panel for cylinder head cover and for charge air distribution pipe		AR01.20-P-5014-02C
		Bolt, cylinder head cover trim panel at cylinder head	*BA01.20-P-1002-01G
		Bolt of trim panel to charge air distribution pipe	*BA01.20-P-1003-01G
3	Remove air filter housing		AR09.10-P-1150T
4	Remove heat shield above turbocharger		AR49.00-P-1000-01T
5	Remove and separate connector for O2 sensor upstream of catalytic converter (G3/2x1) from bracket on exhaust gas recirculation cooler
6	Expose electrical feed line of O2 sensor upstream of catalytic converter (G3/2)	Installation: Install new tie straps.
7	Unscrew O2 sensor upstream of catalytic converter (G3/2) from catalytic converter (111)	Installation: Coat the thread with heat-resistant lubricant.
			*BA07.04-P-1003-01G
		Box wrench bit	Fig 2
		Hot lubricating paste	*BR00.45-Z-1005-06A
8	Install in the reverse order
9.1	Erase DTC memory	After replacing the O2 sensor upstream of catalytic converter (G3/2): ↓
		Connect STAR DIAGNOSIS and read out fault memory	AD00.00-P-2000-04A
		STAR DIAGNOSIS diagnosis system	*WH58.30-Z-1048-13A
	Risk of accident caused by vehicle starting off by itself when engine is running. Risk of injury caused by contusions and burns during starting procedure or when working near engine	Secure vehicle to prevent it from moving. Wear closed and snug-fitting work clothes. Do not grasp hot or rotating parts.	AS00.00-Z-0005-01A
10	Conduct engine test run and inspect exhaust system for leaks

CRANKCASE VENTILATION, CYLINDER HEAD COVER

Number	Designation		Engine 648
BA01.20-P-1002-01G	Bolt connecting trim panel of cylinder head cover to cylinder head	Nm	9
BA01.20-P-1003-01G	Bolt connecting cover to charge air distribution pipe.	Nm	9

SENSORS

Number	Designation		Engine 648.961 with code 494
BA07.04-P-1003-01G	O2S Sensor to catalytic converter	Nm	60

Fig 2: Identifying Ring Wrench Socket (000 589 71 03 00)

COMMERCIALLY AVAILABLE TOOLS

Number	Designation
WH58.30-Z-1048-13A	STAR DIAGNOSIS diagnosis system, Compact Passenger Car	6511 1801 00

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1005-06A	Paste	A 000 989 76 51
