Correction programming, function - GF07.61-P-3031AM
ENGINE 113.990 in MODEL 211, 219
ENGINE 113.991 in MODEL 215, 220
ENGINE 113.992 in MODEL 230 up to Model Year 2008
ENGINE 113.993 in MODEL 463 up to 31.5.12
ENGINE 113.995 in MODEL 230 up to Model Year 2008
Different performance maps for the engine control can be stored or activated with the correction programming in the ME control unit.

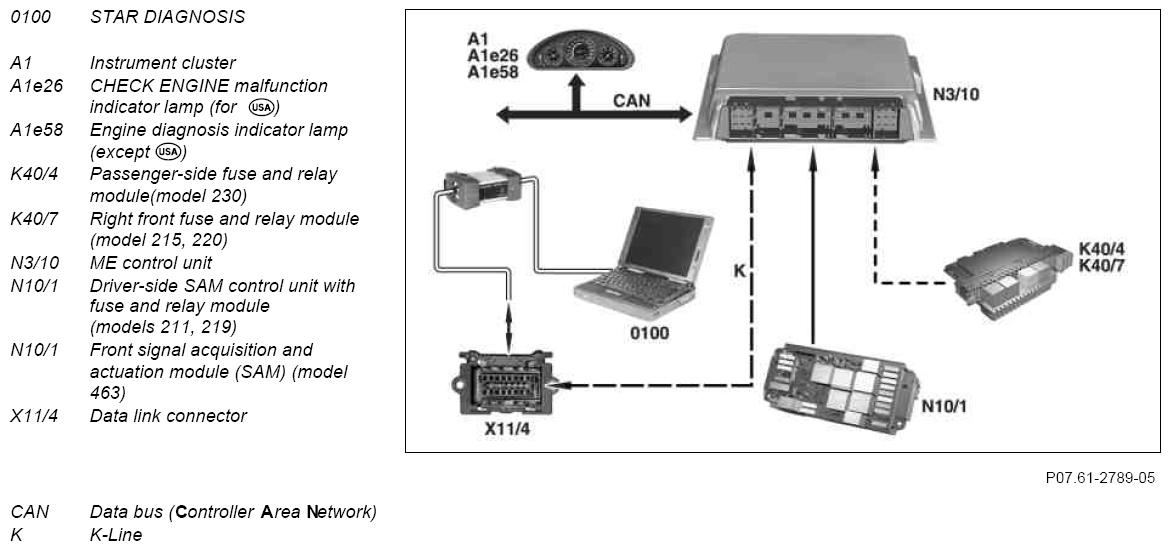

The correction programming can be carried out with STAR Diagnosis when ignition is "ON", via the data link connector.
The following maps can be influenced:
- Ignition maps for adapting to different fuel quality (except
)
- Mixture maps for enriching the air/fuel mixture in different operating states (except
- Idle speed for engaged drive position
- Fault setting conditions for rendering smooth engine running (recognition less sensitive)
| ME-SFI control unit, location/task/design/function | GF07.61-P-5000AM |
