Driver Seat And Steering Column Adjustment Control Module With Memory Connector End View (N32/1)

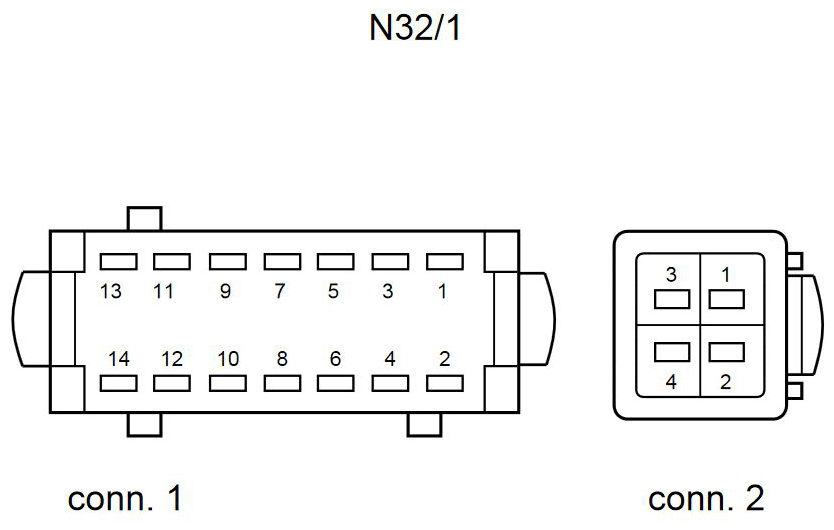

Fig 1: Driver Seat And Steering Column Adjustment Control Module With Memory Connector End View (N32/1)
G11075219Courtesy of MERCEDES-BENZ USA
