Starter Lock-Out Relay Module Internal Resistance, Testing Electrical System Of Electronic Transmission Control (ETC)

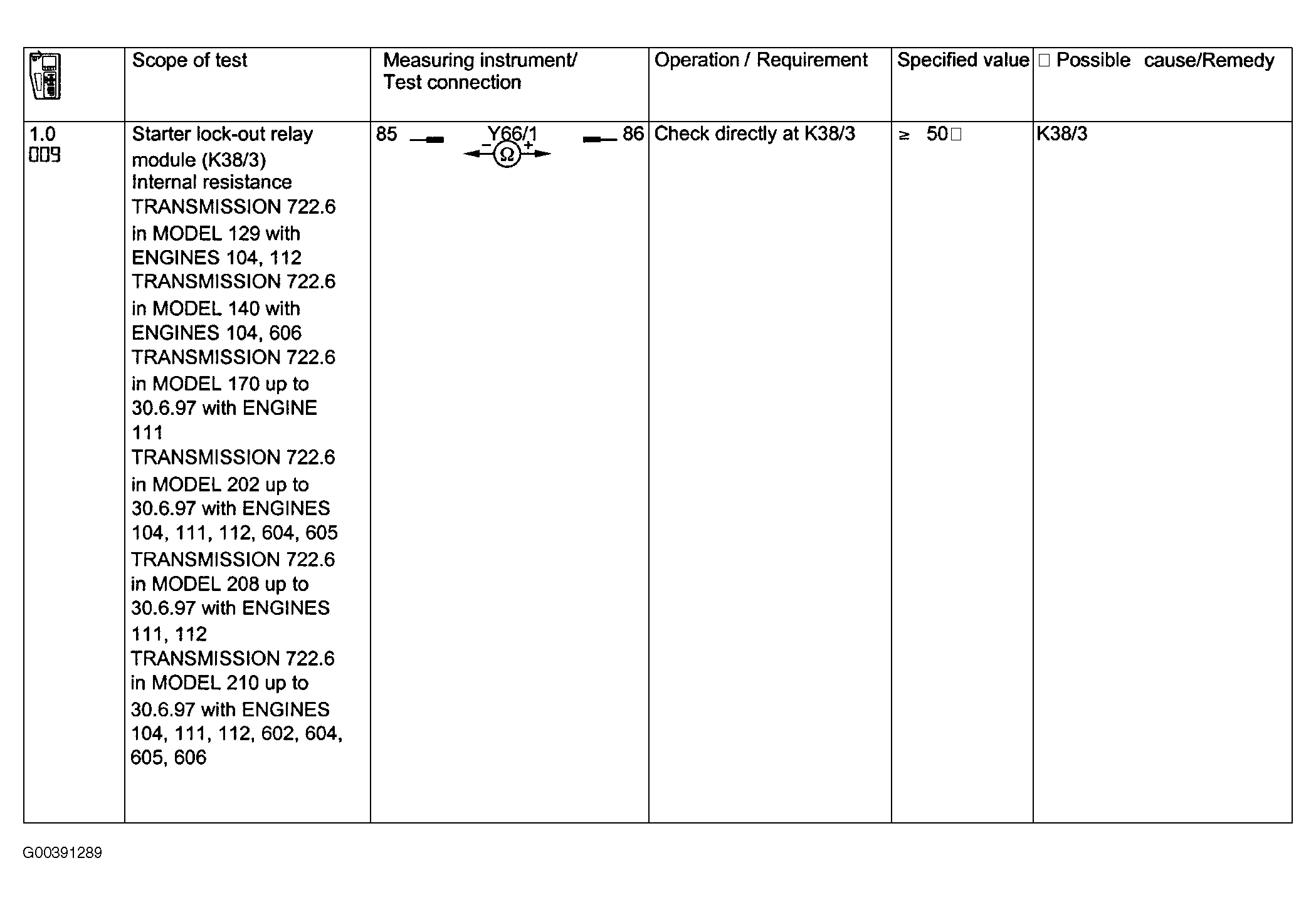

Fig 1: Starter Lock-Out Relay Module Internal Resistance, Testing Electrical System Of Electronic Transmission Control (ETC)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
