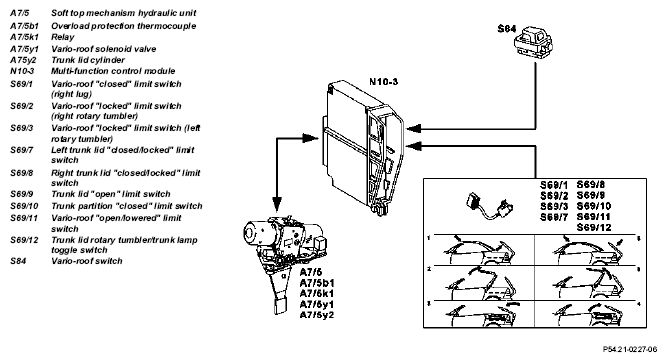

Multi-function control module (CCM), networking the components - GF54.21-P-0001-04G

Fig 1: Identifying Multi-Function Control Module (CCM), Networking Components

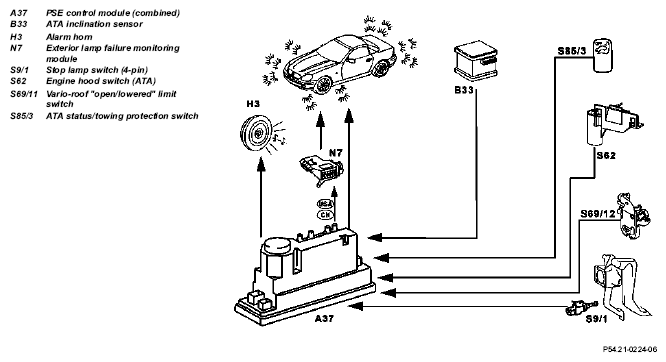

Fig 2: Identifying ATA Inclination Sensor, Alarm Horn, Stop Lamp Switch And PSE Control Module

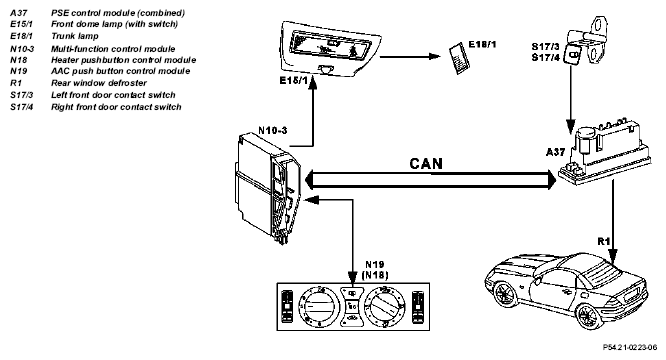

Fig 3: Identifying Left And Right Door Contact Switch And AAC Push Button Control Module

Fig 4: Identifying Module Box Blower Motor, Wiper Motor, Combination Switch And Data Link Connector
