Pedal value sensor position - GF30.20-P-4011-01G

Model 170

Model 170

in left of component compartment

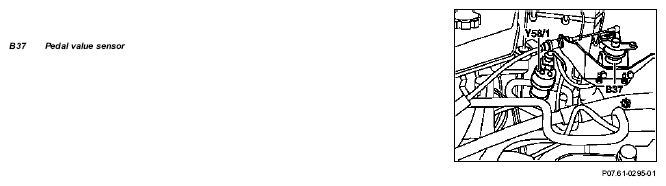

Fig 1: Identifying Pedal Value Sensor Position In Left Of Component Compartment

Model 170 with engine 111 EVO, 112

at accelerator pedal module

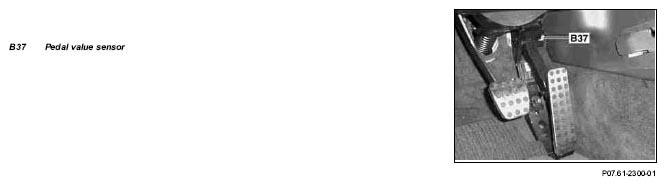

Fig 2: Identifying Pedal Value Sensor Position At Accelerator Pedal Module
