Diaphragm pressure sensor position - GF07.17-P-4106-02F

Engine 104

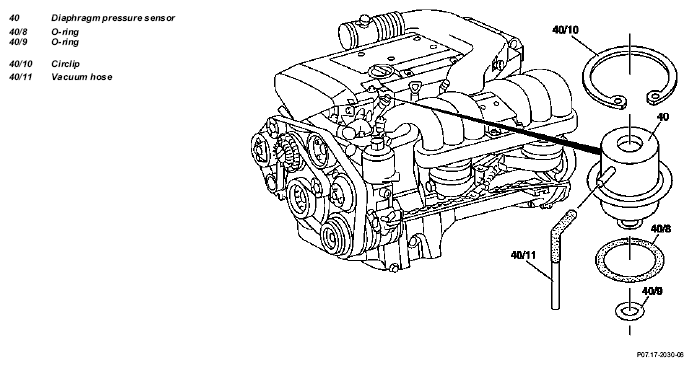

Fig 1: Identifying Diaphragm Pressure Sensor Position - Engine 104
G04624003

Engine 111

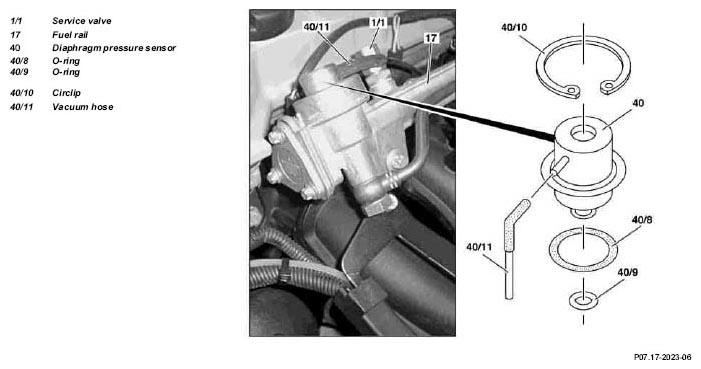

Fig 2: Identifying Diaphragm Pressure Sensor Position - Engine 111
G04624004

Engine 119

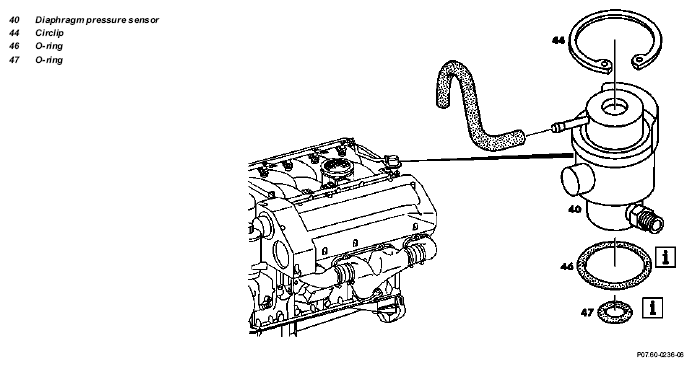

Fig 3: Identifying Diaphragm Pressure Sensor Position - Engine 119
G04624005

Engine 120

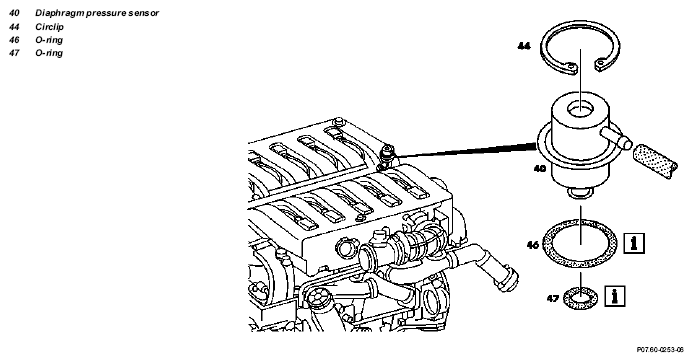

Fig 4: Identifying Diaphragm Pressure Sensor Position - Engine 120
G04624006
