Electronic accelerator/cruise control/idle speed control actuator location/task/design/function - GF30.22-P-4010F: Notes

ENGINE 104.941 /943 /944 /991 /994 as of 1/8/96

ENGINE 104.995 with CODE (494a) USA version with CODE (807) Model year 1997 with CODE (808) Model year 1998 with CODE (498) as of Model year 97 Japanese version

ENGINE 111.921 /942 as of 1.9.98, 111.943, 111.944 as of 1.8.96, 111.946 as of 1.6.98, 111.947 /973, 111.975 as of 1.8.96

ENGINE 111.945 in MODEL 208.335 /435 as of 1.6.98, 202.020 /080 as of 1.9.98

ENGINE 111.974 with CODE (494a) USA version with CODE (807) Model year 1997 with CODE (808) Model year 1998

ENGINE 112.910 /911 /912 /913 /914 /916 /917 /920 /921 /922 /923 /940 /941 /942 /943 /944 /946 /947 /949 /953 /954 /955 /970 /972 /973 /975

ENGINE 113.940 /941 /942 /943 /948 /960 /961 /963 /965 /966 /967 /968 /969

ENGINE 119.980 /981 /982 /985

ENGINE 120.982/ 983

ENGINE 137.970

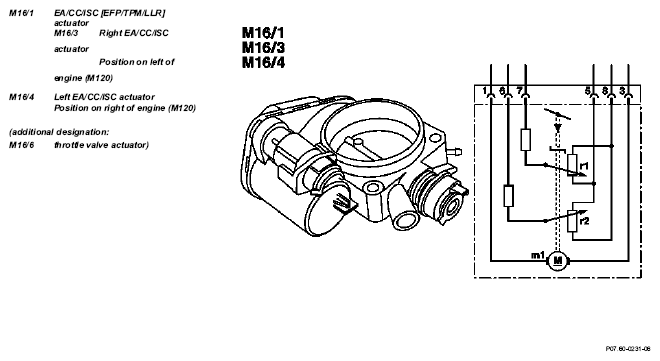

Fig 1: Identifying Electronic Accelerator/Cruise Control/Idle Speed Control Actuator With Circuit Diagram

Electronic accelerator/cruise control/idle speed control actuator position	Engine 104	GF30.22-P-4010-01D
	Engine 111	GF30.22-P-4010-01G
	Engine 112, 113	GF30.22-P-4010-01A
	Engine 119	GF30.22-P-4010-01E
	Engine 120	GF30.22-P-4010-01F
	Engine 137	GF30.22-P-4010-01L
Electronic accelerator/cruise control/idle speed control actuator task	Determining the opening angle of the throttle valve in accordance with the operating condition: Controlling idle speed under different engine loads (power steering turned to full lock, AC compressor engaged) Cruise control mode Emergency electronic accelerator pedal Driving, in accordance with accelerator pedal position.
Electronic accelerator/cruise control/idle speed control actuator task		GF30.22-P-4010-02F
Electronic accelerator/cruise control/idle speed control actuator function		GF30.22-P-4010-03F
