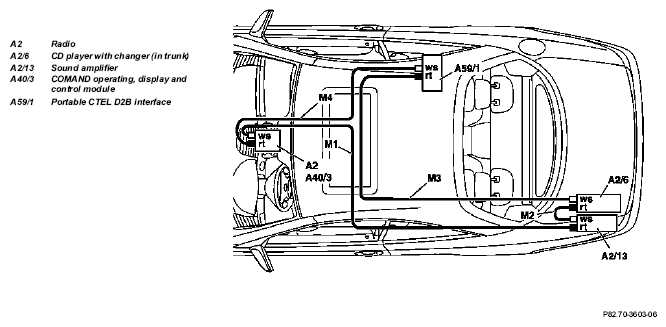

Fiber optic cable, location/task/function - GF82.00-P-4000A: Notes
MODEL 129 as of 1.6.98, 163, 168 as of 1.9.98, 170, 202 as of 1.6.98, 203, 208.3, 210 as of 1.6.98, 215, 220
Exemplified on model 215 with code (819) 6-disc CD changer, with code (810) Sound System and with code (382) MB phone "CTEL" in console on right side of dome
| Fiber optic cable, location | Model 129 | GF82.00-P-4000-01D | |
| Model 163 as of 01.09.01 | GF82.00-P-4000-01GH | ||
| Model 168 | GF82.00-P-4000-01E | ||
| Model 170 | GF82.00-P-4000-01C | ||
| Model 202, 208 | GF82.00-P-4000-01B | ||
| Model 203 | GF82.00-P-4000-01G | ||
| Model 210 | GF82.00-P-4000-01A | ||
| Models 215, 220 | GF82.00-P-4000-01F | ||
| Fiber optic cable, purpose | The fiber optical cable is responsible for the optical data transfer of the components located at the digital data bus (D2B). | ||
| Fiber optic cable, function | GF82.00-P-4000-04A |
