Electronic Selector Lever Module Control Unit, Design (As Of 4/24/04)

To identify electronic selector lever module control unit, see Fig 1.

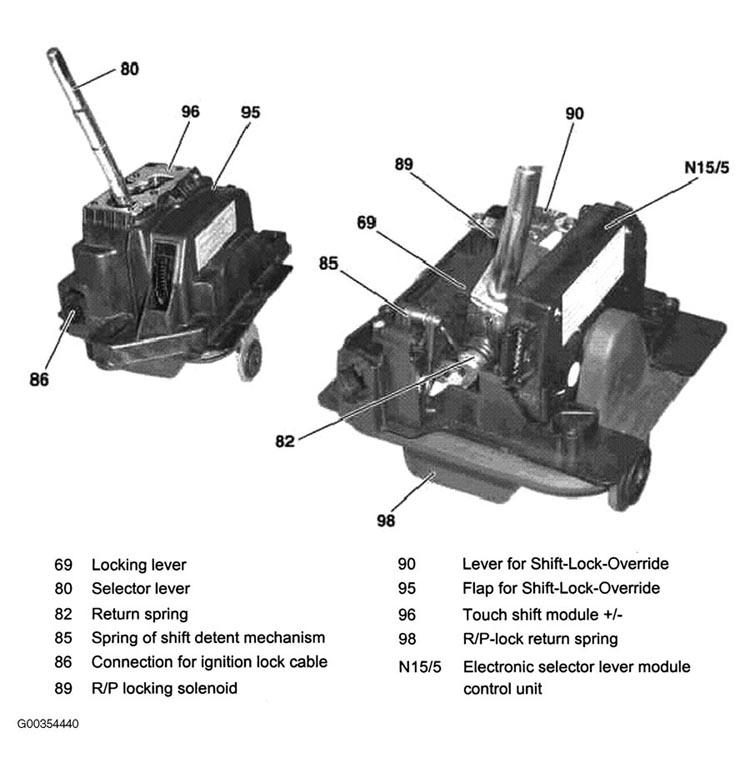

Fig 1: Electronic Selector Lever Module Control Unit, Design (As Of 4/24/04)
G00354440Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
