Function Of Manual Drive Mode Selection (Except Code (128a) Steering Wheel Shift Buttons) (As Of 4/24/04): Notes

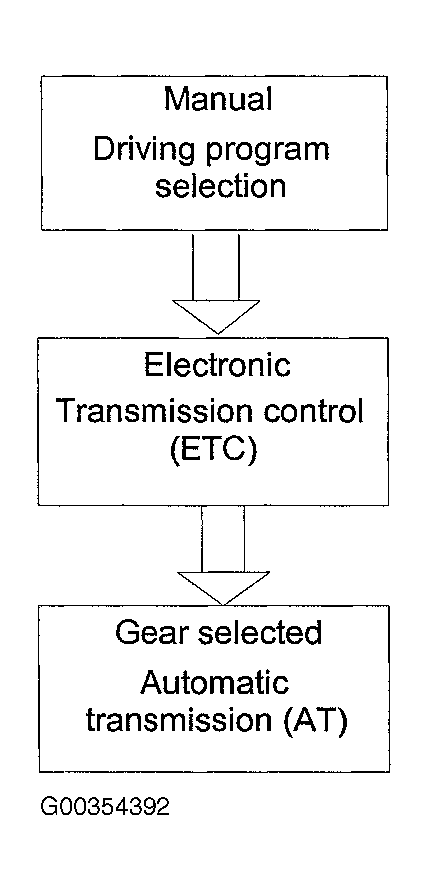

With the selector lever and the transmission mode switch (S16/5) on the floor shift it is possible to adapt the automatic gearshift sequence t suit specific operating conditions. See Fig 1.
The shift range can in fact be changed in the forward gears while driving, however the electronic transmission control (ETC) prevents a shift at an unacceptably high engine speed.
In position "C" (comfort program) of the transmission mode switch (S16/5) a lower overall ratio and therefore a lower output torque is available when driving backwards and forwards. This allows the vehicle to move off more gently. In addition, the gears are not driven to maximum revs.
- Location/Task/Design/Function Of Floor Shift
See CENTER SHIFTER CONSOLE, LOCATION/TASK/DESIGN/FUNCTION (AS OF 4/24/04) . - Location/Task/Design/Function Of Shift Detent
See LOCATION/TASK/DESIGN/FUNCTION OF SHIFT DETENT (AS OF 4/24/04) . - R/P Lock, Location/Task/Design/Function
See R/P LOCK, LOCATION/TASK/DESIGN/FUNCTION . - ETC Control Unit, Location/Task
See ETC CONTROL UNIT, LOCATION/TASK (AS OF 4/24/04) . - Electronic Selector Lever Module Control Unit, Location/Task/Design
See ELECTRONIC SELECTOR LEVER MODULE CONTROL UNIT, LOCATION/TASK/DESIGN (AS OF 4/24/04 EXCEPT CODE (428A) STEERING WHEEL SHIFT BUTTONS) .
