Electric Control Module, Location/Task/Design/Function (As Of 4/24/04): Notes

1. Electric Control Module, Location

   Bolted onto the valve housing of shift plate (2a). See Fig 1.
2. Electric Control Module, Design

   To receive various input signals and to convert the control module information into hydraulic functions. See ELECTRIC CONTROL MODULE, DESIGN .
3. Electric Control Module, Function

   See ELECTRIC CONTROL MODULE, FUNCTION .

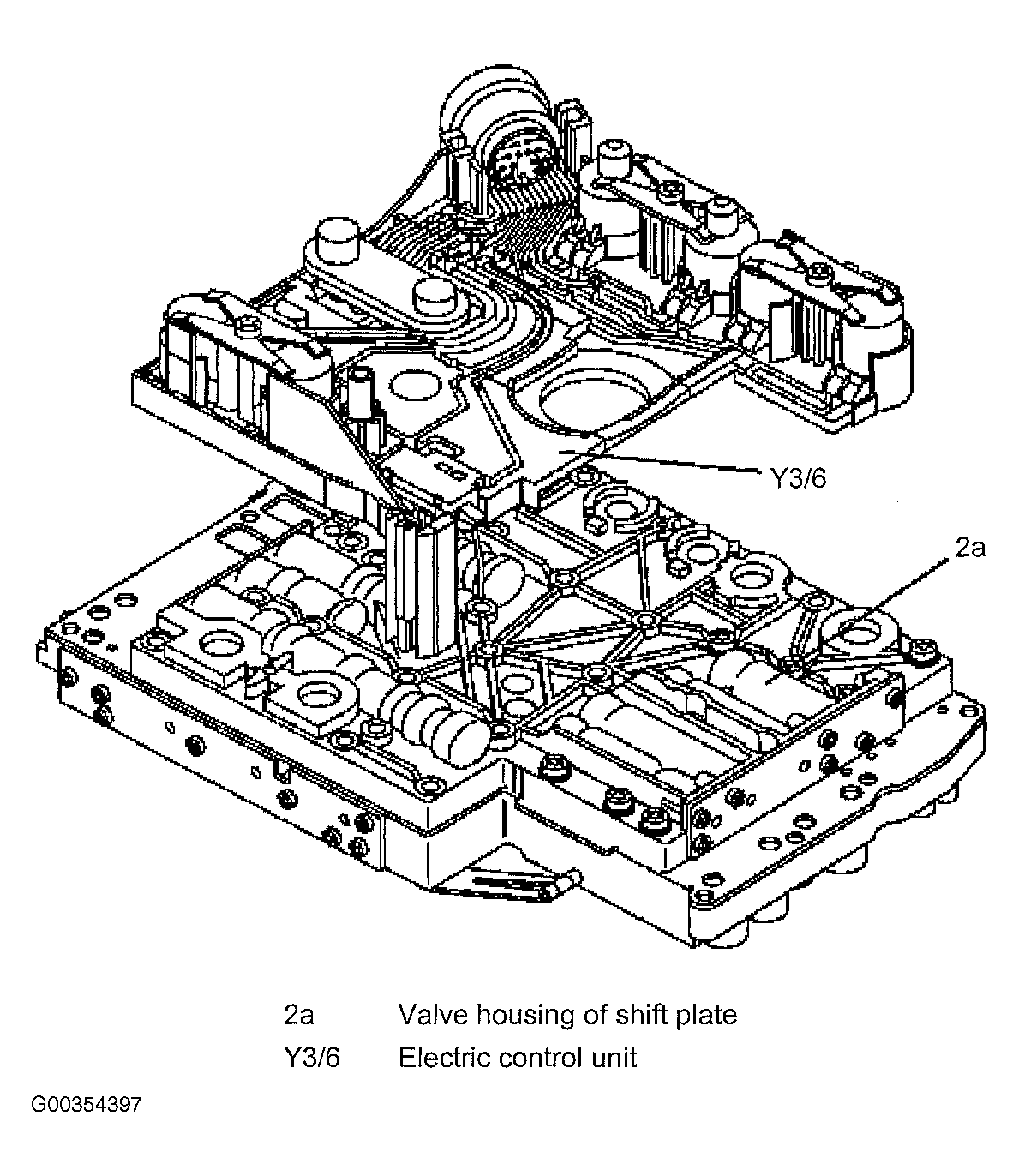

Fig 1: Electric Control Module, Location/Task/Design/Function (As Of 4/24/04)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
