Electronic Selector Lever Module Control Unit, Location/Task/Design (As Of 4/24/04): Notes

1. Control Unit For Electronic Selector Lever Module, Location

   The control unit for the electronic selector lever module (N15/5) is located in the center console of the vehicle. See Fig 1.
2. Control Unit For Electronic Selector Module, Task

   See CONTROL UNIT FOR ELECTRONIC SELECTOR MODULE, TASK .
3. Electronic Selector Lever Module Control Unit, Design

   See ELECTRONIC SELECTOR LEVER MODULE CONTROL UNIT, DESIGN .

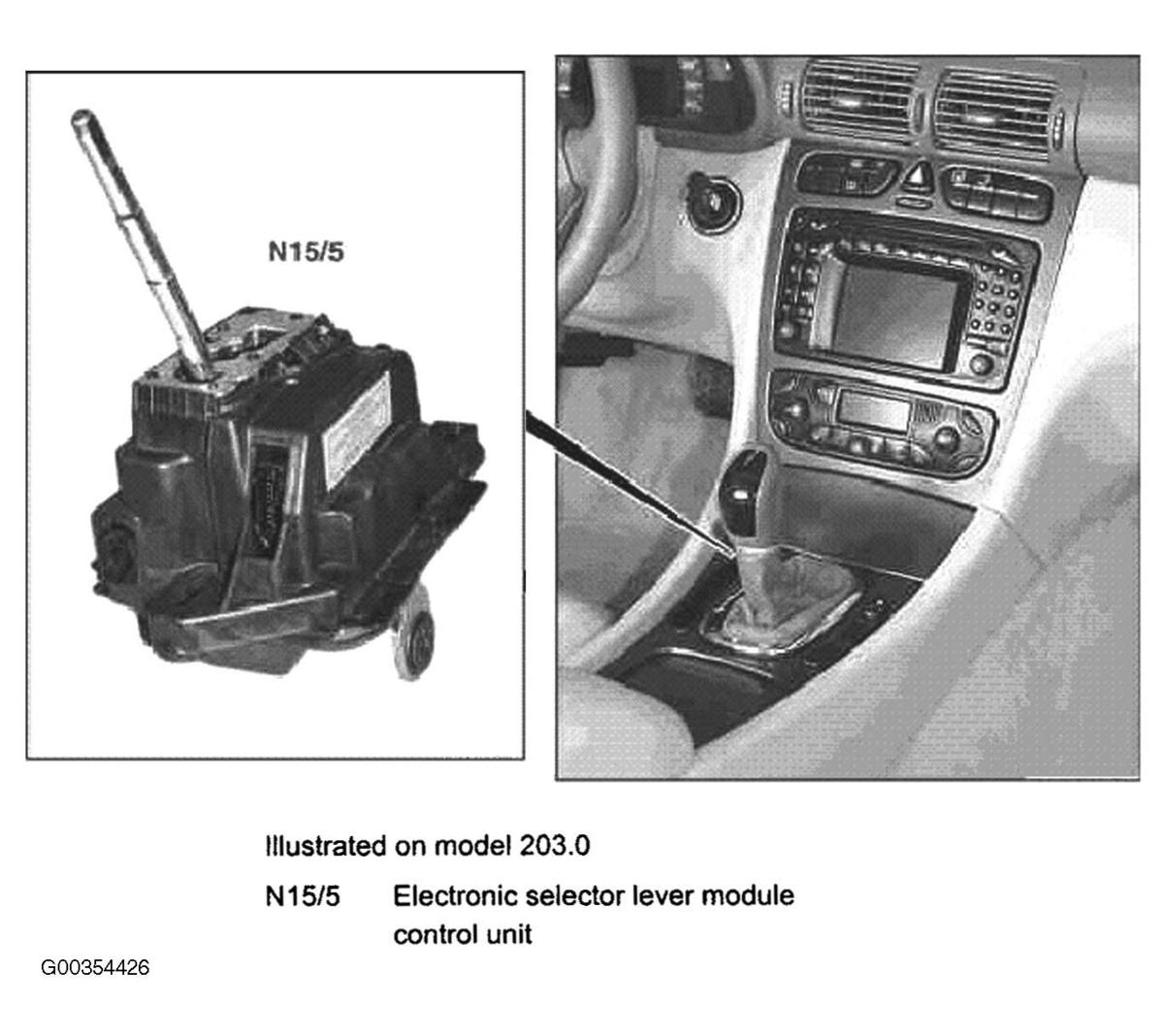

Fig 1: Electronic Selector Lever Module Control Unit, Location/Task/Design (As Of 4/24/04)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
