Temperature Sensor, Location/Task/Design/Function (As Of 4/24/04): Notes

1. Temperature Sensor, Location

   The transmission oil temperature sensor (Y31/6bl) is located in the electrical control unit (Y316) and is permanently connected to the conductor tracks. See Fig 1.
2. Temperature Sensor, Task

   To measure the temperature of the transmission oil and pass the temperature to the ETC control unit (N15/3) as an input signal.
3. Temperature Sensor, Design

   Temperature-dependent resistor (PTC).
4. Temperature Sensor, Function

   See TEMPERATURE SENSOR, FUNCTION .

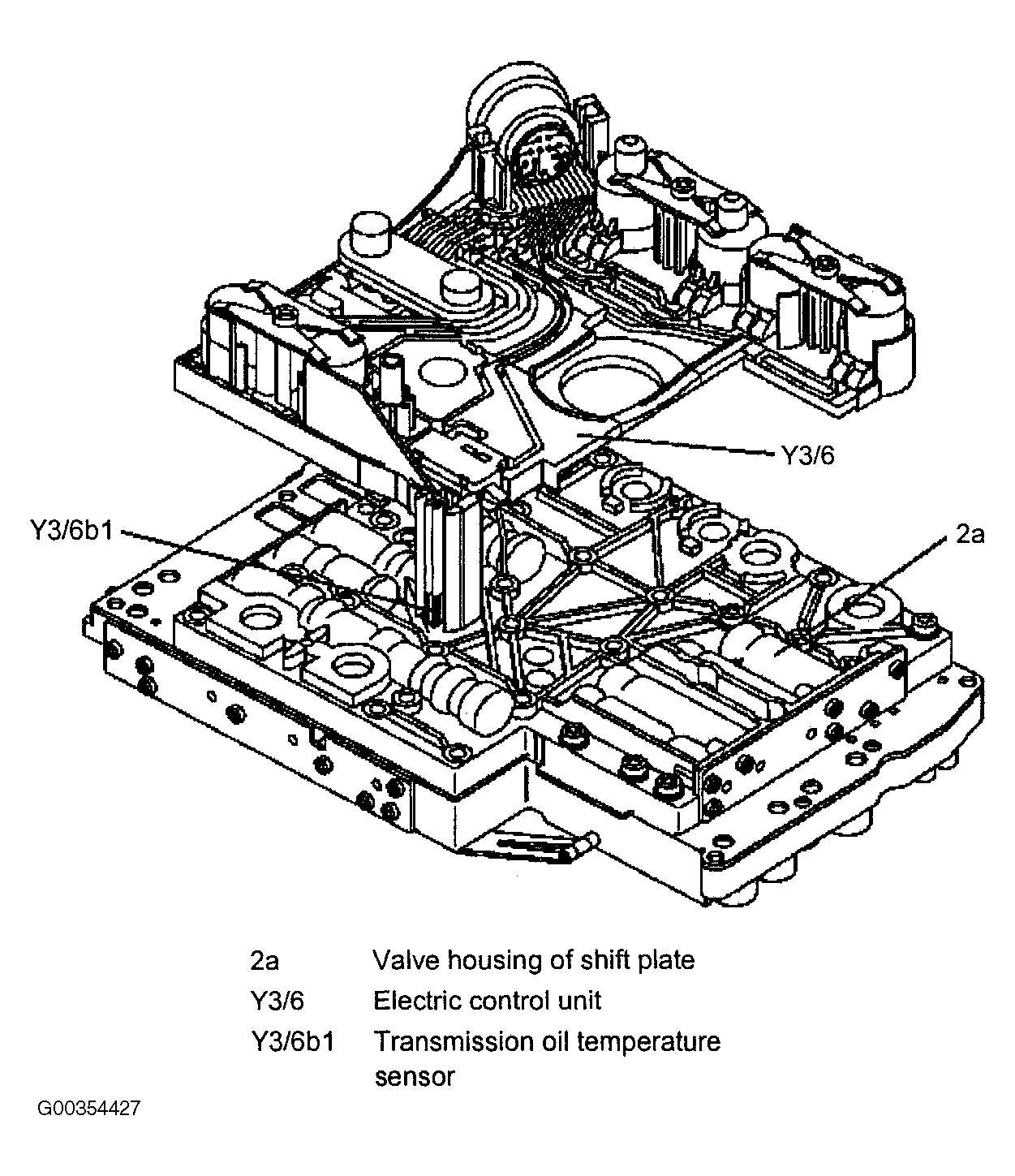

Fig 1: Temperature Sensor, Location/Task/Design/Function (As Of 4/24/04)
