Insert Selector Valve Into Driver Of Detent Plate

1. 1 -  When inserting electrohydraulic control unit into transmission housing, plastic part of selector valve (10) must engage in driver detent plate (11). See Fig 1.

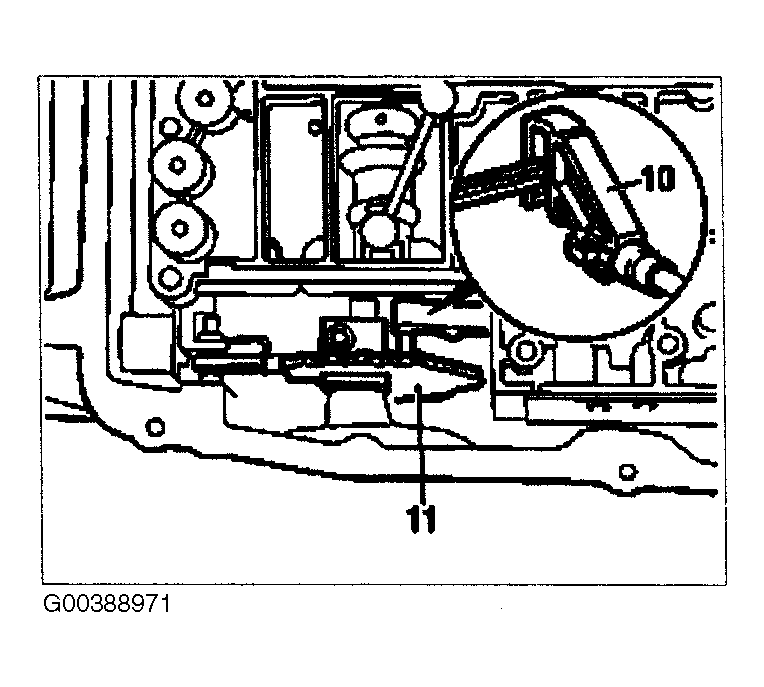

Fig 1: Insert Selector Valve Into Driver Of Detent Plate

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
