Operating, display unit with control unit, location/task/design/function - GF82.85-P-3114DA: Notes

MODEL 215, 220 as of 1.9.02 with CODE (352a) COMAND operating and display system with CODE (494a) USA version

Shown on model 220

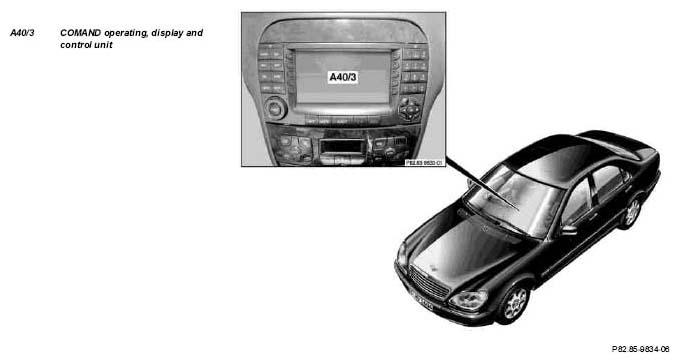

Fig 1: Identifying COMAND Operating Display And Control Unit Location - Shown On Model 220
G04841105
  Operating, display unit with control unit, location The COMAND operating, display and control unit (A40/3) is installed in the center console between the operating module for the interior air conditioning and the upper control panel.
  Operating, display unit with control unit, task Central control of the following systems:
  • Radio and CD player
  • Cassette drive
  • 6-disk CD changer (optional)
  • Sound system (optional)
  • Navigation
  • Telephone

  Operating, display unit with control unit, design Except code 498 GF82.85-P-3114-07DA
  Operating, display unit with control unit, function   GF82.85-P-3114-08BA
