ECI ignition system power pack location/task/design/function - GF15.15-P-3100L: Notes

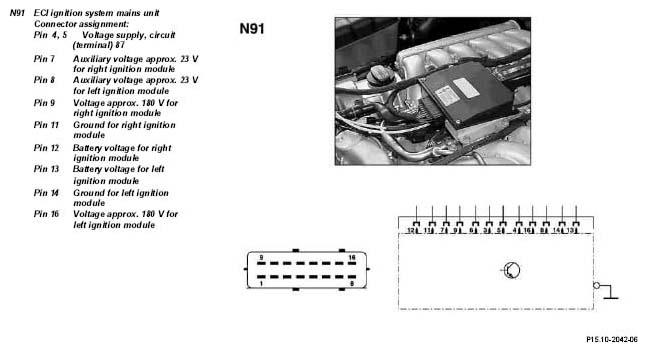

Fig 1: Identifying ECI Ignition System Mains Unit Connector Location

	Risk of fatal injury  when touching parts conducting high voltage when the ignition is switched off	After ignition is turned OFF, only disconnect the plug on the ECI power pack after waiting 3 minutes.	AS15.15-Z-0001-01A
	Power pack location		GF15.15-P-3100-01L
	Power pack task	The power pack generates the following different DC voltage for each ignition module from the battery voltage: 23 volts as an auxiliary voltage for ion current measurement about 180 volts for generating the ignition voltage Terminal 87 is also looped to each ignition module.
	Power pack design		GF15.15-P-3100-02L
	Power pack function	AC voltage converter with two separate channels each with 55 watts for an ignition module on the right and the left. All outputs are protected.
