Data link connector, location/task/design/function - GF54.22-P-2100T: Notes
MODEL 211.0 /2 /6

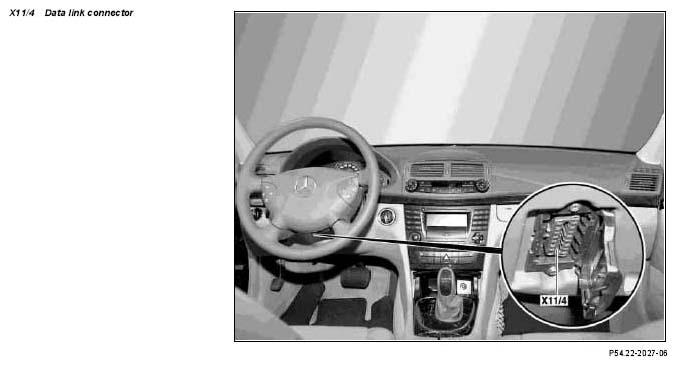

| Data link connector, location | The data link connector (X11/4) is located in the driver-side footwell. | ||
| Data link connector, task | The 16-pin data link connector (X11/4) connects the STAR DIAGNOSIS and the K-lines of the control units in the vehicle. | ||
| Data link connector, design | GF54.22-P-2100-02T | ||
| Data link connector, function | The data link connector (X11/4) bundles the K-lines of the control units in the vehicle into a fixed connector. The K-lines must be active for outputting faults so that the fault codes of the control units can be read out. |
