Upper control panel control unit, location / task / design / function - GF54.21-P-4105TS: Notes
MODEL 211.2
Shown up to 31.5.06

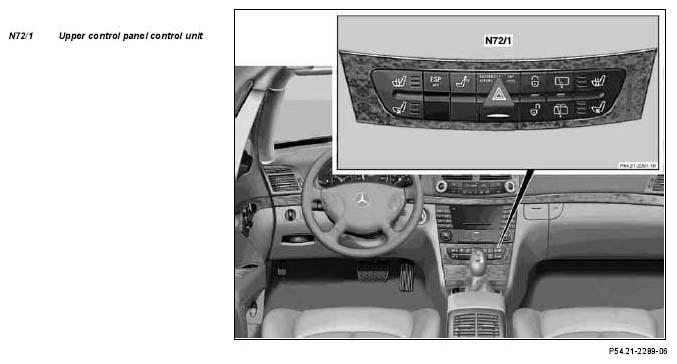

| Upper control panel control unit Location | The upper control panel control unit (N72/1) is installed in the center section of the dashboard. | ||
| Upper control panel control unit, task | GF54.21-P-4105-02TS | ||
| Upper control panel control unit, design | Up to 31.5.06 without code (494) USA version without code (498) Japan version up to 30.6.06 with code (494) USA version with code (498) Japan version |
GF54.21-P-4105-03TS | |
| As of 1.6.06 without code (494) USA version without code (498) Japan version as of 1.7.06 with code (494) USA version with code (498) Japan version |
GF54.21-P-4105-03TM | ||
| Upper control panel control unit, function | The upper control panel control unit (N72/1) operates with its own microprocessor which reads in switches, processes signals and exchanges data with the Controller Area Network bus class B (interior) (CAN-B). |
