Radio control panel, location/task/design/function - GF82.60-P-3115TB: Notes
MODELS 211.004 /006 /016 /026 /028 /042 /043 /061 /065 /070 /076 up to 28.2.03
Locations

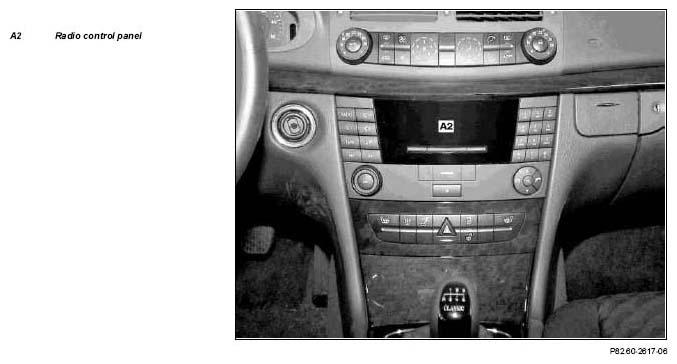

Fig 1: Identifying Radio Control Panel Location - Models 211.004 /006 /016 /026 /028 /042 /043 /061 /065 /070 /076 Up To 28.2.03
| Radio operating module, location | The radio operating module (A2) (Audio 20 CC) is installed in the 2-DIN slot in the center console between the operating module of the interior climate control and the upper control panel. | ||
| Radio operating module, task | Central control of the following systems:
|
||
| Radio operating module, design | GF82.60-P-3115-03TB | ||
| Radio operating module, function | GF82.60-P-3115-04TB |
