Operating, display and control module, location/purpose/design/function - GF82.85-P-3114TU: Notes

MODEL 211.0 /2 up to 30.6.06 with CODE (528) HIGH Class USA

Shown on model 211.0

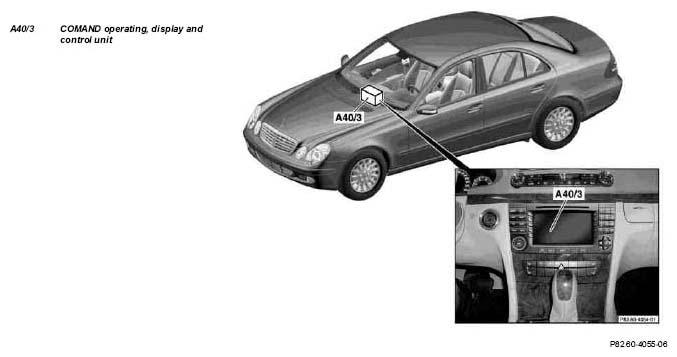

Fig 1: Identifying Command Operating Display And Control Unit Location (Shown On Model 211.0)

	Operating / display unit with control module, location	The COMAND operating, display and control unit (A40/3) is installed in the 2-DIN opening in the center console between the operating module for the interior air conditioning and the upper control panel.
	Operating, display and control module, purpose	Central control of the following systems: Audio (Radio, CD) Telecommunications Navigation system Voice control system (VCS) Video-DVD
	Operating / display unit with control module, design		GF82.85-P-3114-07TU
	Operating display unit with control module, function		GF82.85-P-3114-08TU
