Charge air temperature sensor, location/task/design/function - GF07.04-P-5039AM: Notes
| Charge air temperature sensor, location | GF07.04-P-5038-03AM | ||
| Charge air temperature sensor, task | The charge air temperature sensor detects the charge air temperature and transmits a corresponding signal voltage to the ME-SFI [ME] control unit (N3/10). The boost pressure and charge air temperature are used by the ME-SFI [ME] control unit to calculate the supplied air mass. Moreover, the functioning of the charge air cooling system is monitored through the charge air temperature. | ||

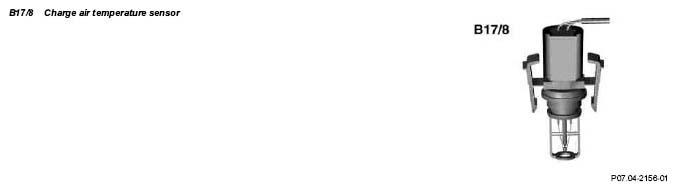

| Charge air temperature sensor, design | The charge air temperature sensor has an NTC resistor and a 2-pin plug connection. NTC = N egative T emperature C oefficient |
||
| Charge air temperature sensor, function | GF07.04-P-5039-02AM |
