ME-SFI control unit, location/task/design/function - GF07.61-P-5000KE: Notes

ENGINE 271.942

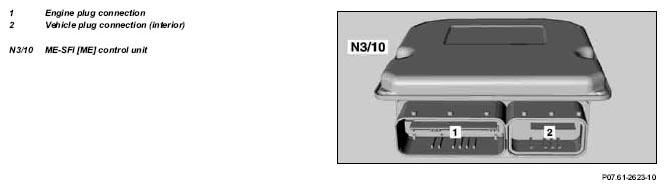

Fig 1: Identifying ME-SFI Control Unit Components - Engine 271.942
G04738484
  ME-SFI control unit, location   GF07.61-P-5000-01KE
  ME-SFI control unit, task The ME control unit controls and coordinates the following systems:
  • Ignition system
  • Injection system
  • Electronic accelerator/cruise control/idle speed control
  • Diagnosis and fault storage
  • Drive authorization/immobilizer
  • Emission control system

  ME-SFI control unit, design The housing of the ME control unit is manufactured from aluminum and is watertight.
The housing contains the measuring and control electronics of the engine control.
  ME-SFI control unit, function   GF07.61-P-5000-02D
