Remove/install upper control panel control unit - AR54.21-P-1262T
MODEL 211.0/ 2/ 6
| Remove/Install | |||
|---|---|---|---|
| Notes on avoiding damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||

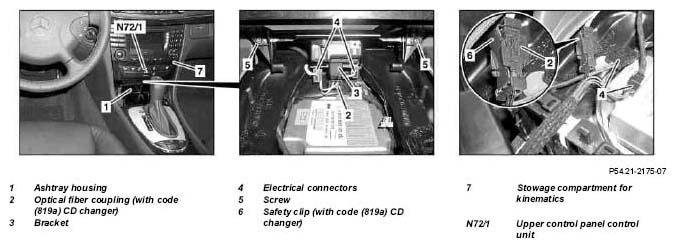

| 1 | Remove ashtray housing (1) from front center console | AR68.20-P-2400T | |
| 2.1 | Unclip fiber optical cable coupling (2) forwards out of the bracket (3) | On vehicles with code (819a) CD changer | |
| 3 | Unclip electrical connector (4) from the bracket (3) | ||
| 4 | Unscrew bolts (5) | ||
| 5 | Pull kinematics compartment (7) or CD changer out of the center console until the electrical connectors (4) and optical fiber coupling are accessible (2) | ||
| 6 | Disconnect electrical connectors (4). | ||
| 7.1 | Remove retaining clamp (6) and disconnect fiber-optic cable (2) | On vehicles with code (819a) CD changer | |
| 8.1 | Cover fiber optic cable | On vehicles with code (819a) CD changer | AR82.95-P-0005-01A |
| 9 | Remove kinematics stowage compartment (7) | ||

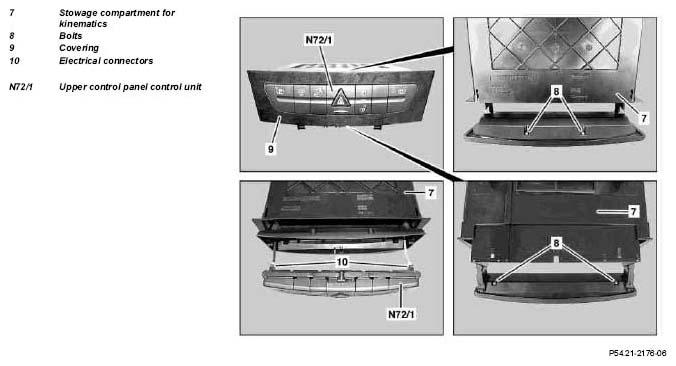

| 10 | Open flap of kinematics stowage compartment (7) as far as possible | ||
| 11 | Unscrew bolts (8) and remove covering (9) from the flap on the kinematics stowage compartment (7) | ||
| 12 | Unplug electrical connections (10) and remove upper control panel control unit (N72/1) | ||
| 13 | Install in the reverse order |
