R/P lock, location/task/design/function - GF27.60-P-5103P: Notes

TRANSMISSION 722.6 in MODEL 171.4, 203, 209, 211, 219

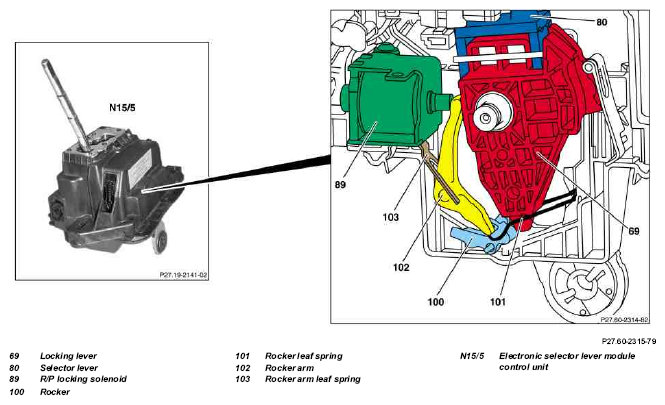

Fig 1: Identifying R/P Lock Location - Transmission 722.6 In Model 171.4, 203, 209, 211, 219

	R/P lock, location	The R/P lock is integrated in the electronic selector lever module control unit (N15/5).
	R/P lock, task	Depending on the prerequisite, the R/P-lockout prevents a shift out of selector lever position "P" or a changeover to selector lever position "R" from "N".
	R/P lock, design	The R/P lock consists of: Locking lever (69) R/P locking solenoid (89) Rocker (100) Leaf spring of rocker (101) Rocker arm (102) Leaf spring of rocker arm (103)
	R/P lock, function		GF27.60-P-5103-04P
