Location/Task/Design/Function Of Shift Detent (Model 209, 211): Notes

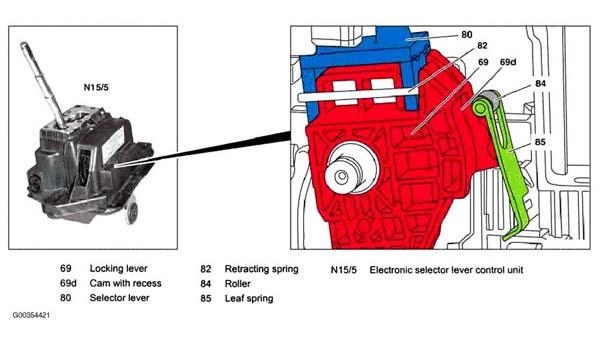

Fig 1: Location/Task/Design/Function Of Shift Detent

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

1. Shift Detent, Location

   The shift detent is integrated in the electronic selector lever module control unit (N15/5). See Fig 1.
2. Shift Detent, Task

   Fixing the selector lever positions "R", "N" and "D".
3. Shift Detent, Design

   The shift detent consists of:
   • The locking lever (69) rigidly connected to the selector lever (80).
   • A leaf spring clamped in the base body (85).
   • A roller (84) inserted in the leaf spring (85) (84).
4. Shift Detent, Function

   See SHIFT DETENT, FUNCTION .
