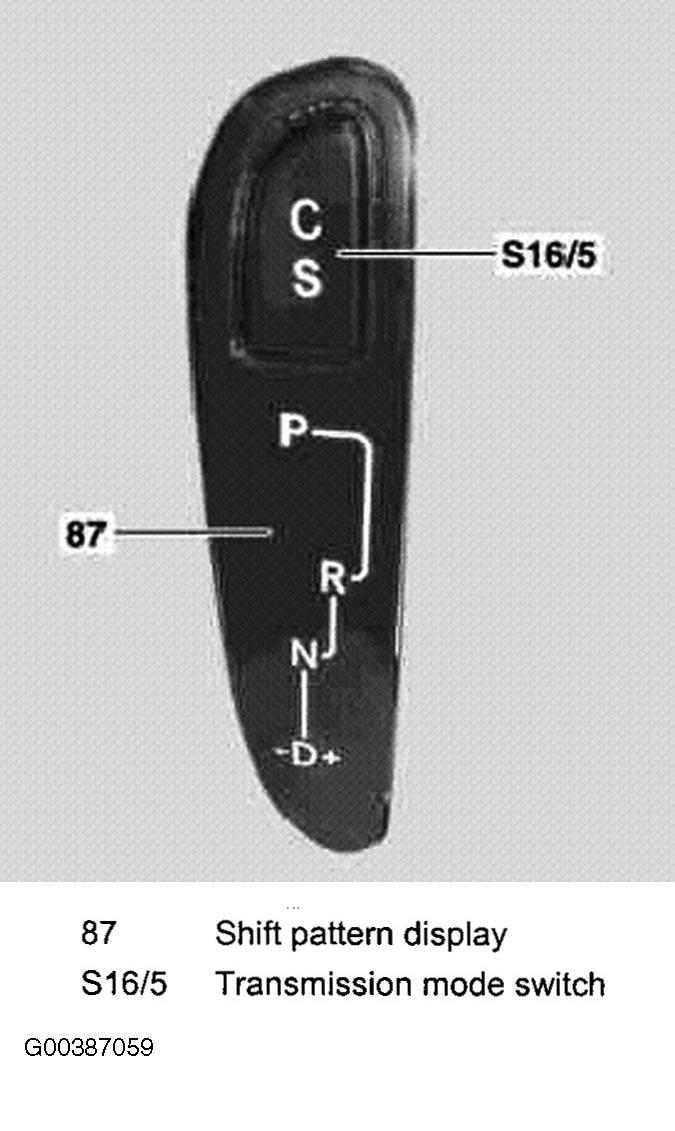

Shift Pattern Display, Function
The program selection performed with the driving program switch (S16/5) is sent from the ETC control unit (N15/3) to the instrument cluster (A1) and the selector lever position is sent from the electronic selector lever module control unit (N15/5) to the instrument cluster (A1).
The program selection performed at the transmission mode switch (S16/5) only remains stored after a driving tome of approximately 1 minute and is then displayed again once the engine is started again. The driving time of approximately 1 minute is necessary because of the system.
The selector diagram system of symbols (87) is illuminated when the driving lamps are switched on.
