Manual Program Selection, Function (722.6 In Model 209.376 Up To 05/31/03, 211.076, 230.474 Up To 08/31/03

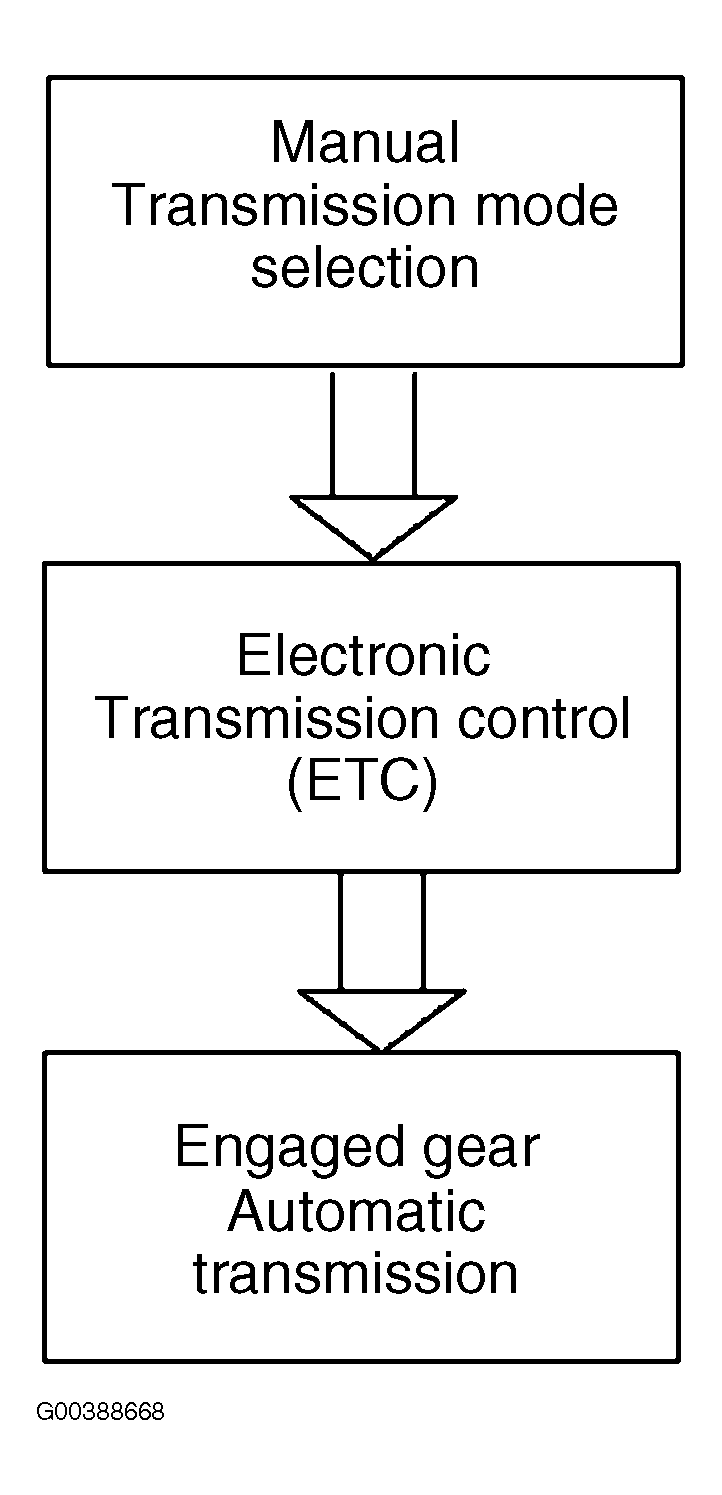

S16/5 Using the selector lever and transmission mode switch (<>) of the floor shift it is possible to adapt the automatic gearshift sequence to suit specific operating conditions. See Figure.

In the forward gears the shift range can, in fact, be change while driving, but the electronic transmission control (ETC) prevents a shift at an unacceptably high engine speed.

In the "W" (winter program) position of the transmission mode switch (S16/5) a lower overall ratio and, as a result, a lower output moment is available when starting off forwards and when reversing. This allows the vehicle to move off more gently. In addition, the gears are not driven to maximum revs.

In position "M" (manual program) of the transmission mode switch (S16/5) all forward gears can be shifted directly by means of selector lever (touch shifts to "+" or "-") or by operating the steering wheel gear shifter MINUS (S110/1) or steering wheel gear shifter PLUS (S111/1).

Shift operations at unacceptably high or low speed are not carried out.

1. Floor Shift, Location/Task/Design/Function

   See CENTER SHIFTER CONSOLE, LOCATION/TASK/DESIGN/FUNCTION (MODELS 209, 211) .
2. Location/Task/Design/Function Of Shift Detent

   See LOCATION/TASK/DESIGN/FUNCTION OF SHIFT DETENT (MODEL 209, 211) .
3. R/P Lock, Location/Task/Design/Function

   See R/P LOCK, LOCATION/TASK/DESIGN/FUNCTION (MODEL 209. 211, 219) .
4. Location/Task/Function Of Position Indicator

   See LOCATION/TASK/FUNCTION OF POSITION INDICATOR (722.6 IN MODEL 209.376 UP TO 05/31/03, 211.076, 230.474 UP TO 08/31/03) .
5. ETC Control Module, Location/Task

   See ETC CONTROL UNIT, LOCATION/TASK .
6. Electronic Selector Lever Module Control Module, Location/Task/Design

   See ELECTRONIC SELECTOR LEVER MODULE CONTROL UNIT, LOCATION/TASK/DESIGN (MODEL 209, 211, 219) .
