Trunk lid power locking unit, location/purpose/design/function - GF80.20-P-4122T: Notes
MODEL 211.0 with CODE (881b) Remote trunk locking (RTL)

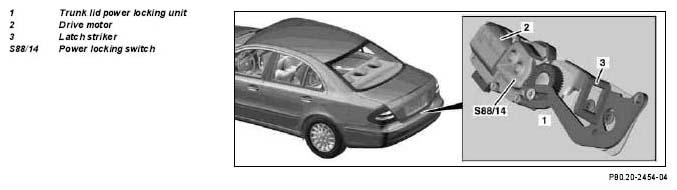

| Trunk lid power locking unit, location | The trunk lid power locking unit (1) is located in the rear center section. | ||
| Trunk lid power locking unit, purpose | Completely and reliably closing the trunk lid | ||
| Trunk lid power locking unit, design | The trunk lid power locking (1) consists of a pivotable striker eye (3), the drive motor (2) and the power locking switch (S88/14) for sensing the striker eye position. | ||
| Trunk lid power locking unit, function | GF80.20-P-4122-01T |
