Control valve, location/task/function - GF83.55-P-2102P: Notes
ENGINE 111, 112, 113, 271, 272, 611, 612, 642, 646 in MODEL 203.0 /2 with CODE (580) Air conditioning (or Tempmatic for USA) with CODE (580) Automatic air conditioning with CODE (581) Automatic air conditioning with CODE (581) Comfort automatic air conditioning
ENGINE 111, 112, 271, 272, 611, 612, 646 in MODEL 203.7 with CODE (580) Air conditioning (or Tempmatic for USA) with CODE (580) Automatic air conditioning with CODE (581) Automatic air conditioning with CODE (581) Comfort automatic air conditioning
ENGINE 112.942 /970, 113.942 /965 /981, 612.963, 628.963 in MODEL 163 as of 1.9.01 with CODE (580) Automatic air conditioning
ENGINE 112, 113, 271, 272, 273, 612, 642, 646 in MODEL 209.3
ENGINE 112, 113, 271, 272, 273, 642 in MODEL 209.4

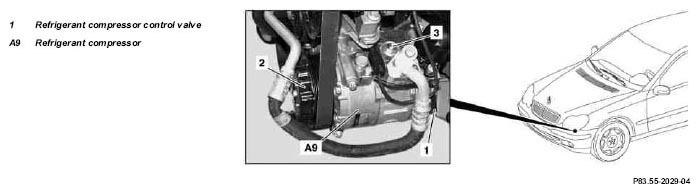

Shown on model 203
| Refrigerant compressor control valve, position | The refrigerant compressor control valve (1) is located on the refrigerant compressor (A9). | ||
| Refrigerant compressor control valve, task | The refrigerant compressor control valve (1) regulates the swept volume of the refrigerant compressor (A9) dependent upon the refrigerant capacity requirement. | ||
| Refrigerant compressor control valve, function | GF83.55-P-2102-02P |
