Voice control system (VCS [SBS]) switch, component description - GF82.70-P-4301G
MODEL 463.247 /248 /254 /270 /303 /340 /341 up to 31.8.08 with CODE (EL1) LINGUATRONIC voice control system as of model year 2007 model year 07.5, YoM 07
MODEL 463.249 /271 as of model year 2007 model year 07.5, YoM 07
MODEL 463.202 /222 /236 /237 /270 /271 /303 /340 /341 with CODE (EU1) COMAND, APS as of model year 2009/YoM 08
Location

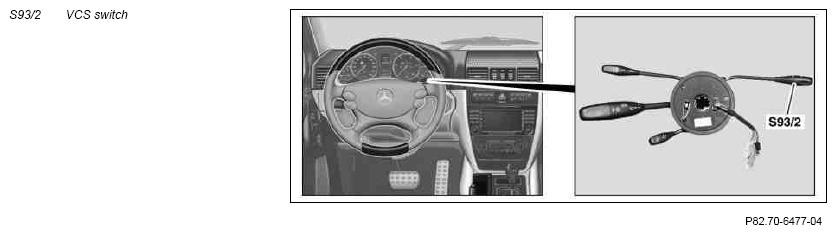

The VCS [SBS] switch is located on the right-hand side of the steering column tube module (N80).
Task
The VCS [SBS] switch is used to switch the voice control system on and off as well as to break-off a telephone call.
