COMAND operating, display and controller unit, component description - GF82.85-P-3134GAJ

MODEL 463.236 /270 up to 31.5.12 with CODE (EU1) COMAND APS with CODE (ZJ1) Japan version as of Model Year 2009 /YoM 08

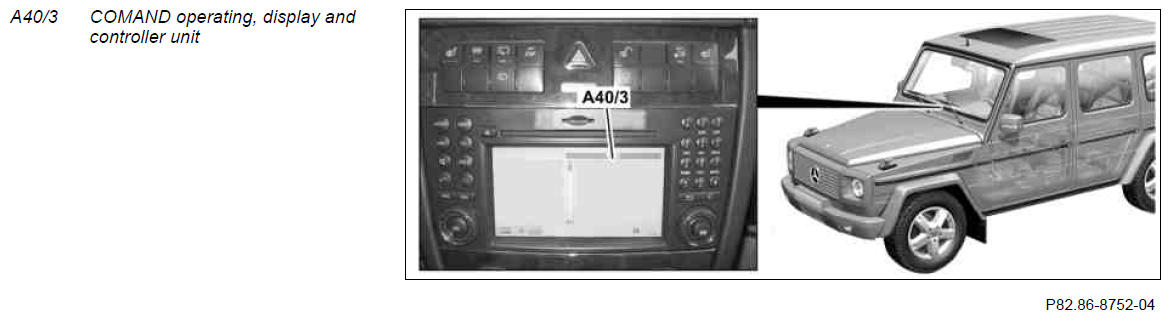

Location

The COMAND operating, display and controller unit is installed in the center of the instrument panel.

Task

The COMAND operating, display and controller unit has the following tasks:

• Central operating and display unit for the entertainment and communication systems integrated into the vehicle
• Reads in the controls and input signals
• Evaluation of input factors
• Actuates output media

Central operating and display unit for the entertainment and communication systems integrated into the vehicle

The COMAND operating, display and controller unit provides a structured and uniform user surface to the user.

Reads in the controls and input signals

The input factors are read in via the following connections:

• Direct line
• Interior CAN (CAN B)
• Media Oriented System Transport (MOST)

Direct line

The COMAND operating, display and controller unit has the following direct connections:

• Circuit 30
• Circuit 31
• Wake-up for MOST (bidirectional)
• AUX input 1
• Antenna input from amplifier module 1, window antenna (A2/71)
• Antenna input from amplifier module 3, window antenna (A2/73)
• Bluetooth antenna (A2/91)
• Left front GPS antenna (A2/23)
• Hands-free system microphone (A67b1) (two microphones for hands-free use)
• Electronic Toll Collection (ETC) antenna (A2/94) (Dealer Option)
• VICS roof antenna (A2/96) (Dealer Option)
• TV input (digital)
• Communication control unit (N123/6)
• Electronic Toll Collection control unit (A50/3) (Dealer Option)
• AUX input 2

Interior CAN

The COMAND operating, display and controller unit is a subscriber of the interior CAN. It communicates with the following control units:

• EIS [EZS] control unit (N73)
• Steering column tube module (N80)

MOST

The COMAND operating, display and controller unit is a subscriber of MOST. It communicates with the following control units:

• Digital TV tuner (A90/3)
• Sound system amplifier (N40/9) (with code (EU9) Surround sound system (harman/kardon Logic 7))
• Media interface control unit (N125/1) (with code (EH3) Media interface)

Evaluation of input factors

The input factors are processed internally in the COMAND operating, display and controller unit.

Actuates output media

The following direct output signals are possible:

• Audio OUT to the following speakers (without code (EU9) Surround sound system (harman/kardon Logic 7)):
  • Left front door speaker (H4/1)
  • Right front door speaker (H4/2)
  • Left rear door speaker (H4/5)
  • Right rear door speaker (H4/6)
  • Center cockpit speaker (centerfill) (H4/27)
  • Left cockpit tweeter (H4/33)
  • Right cockpit tweeter (H4/34)
• External fan (power supply, speed control and diagnosis)
• Power supply for communications control unit
• Power supply for Electronic Toll Collection antenna (Dealer Option)
• Power supply for VICS roof antenna (Dealer Option)
• Power supply for Electronic Toll Collection control unit (Dealer Option)
• Power supply:
  • Amplifier module 1, window antenna
  • Window antenna amplifier module 2 (A2/72)
  • Amplifier module 3, window antenna
  • Window antenna amplifier module 4 (A2/74)
• Bluetooth antenna power supply
• Power supply for left front GPS antenna

Design

The following components are also integrated:

• DVD drive
• Central computer
• Hard disk
• Navigation module
• Audio amplifier (without code (EU9) Surround sound system (harman/kardon Logic 7))

Function

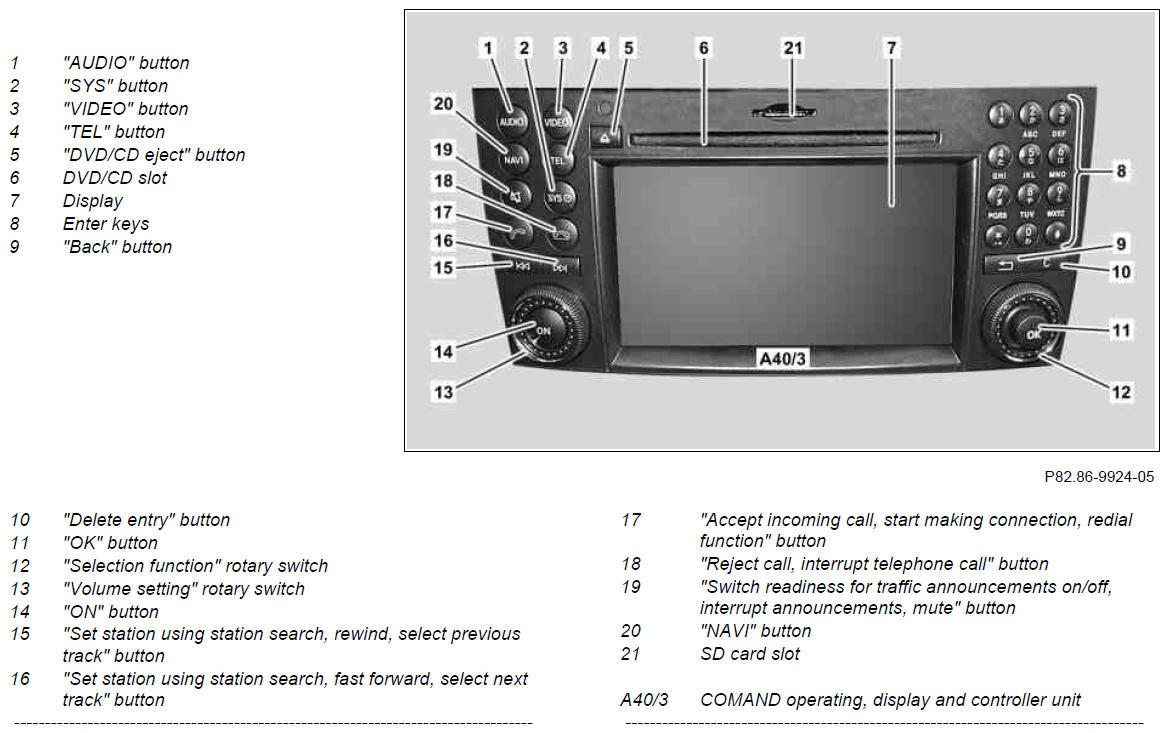

The actuation of the control buttons on the COMAND operating, display and controller unit is read in and made available to the integrated central computer. The button actuations are processed further in the central computer and transferred to the other system components via the MOST or the interior CAN in the form of a message.

If the "ON" button on the COMAND operating, display and controller unit is pressed, the COMAND operating, display and controller unit is switched on or off. The volume is regulated by turning the "Volume setting" rotary switch for each set audio source. The user can switch to the required system component by pressing the menu buttons.

DVD drive

The integrated DVD drive can be used to play audio or video CDs and DVDs (including in MP3 format).
