Rain sensor, location/task/design/function - GF82.30-P-4103GA
MODEL 463.306 /336 /346 as of model year 2011 /YoM 10
MODEL 463.202 /222 /236 /237 as of model year 2009 /YoM 08
MODEL 463.244 /245 /247 /248 /249 /250 /254 /309 /332 /333 up to 31.8.08
MODEL 463.270 /271 /303 /340 /341 as of model year 2007

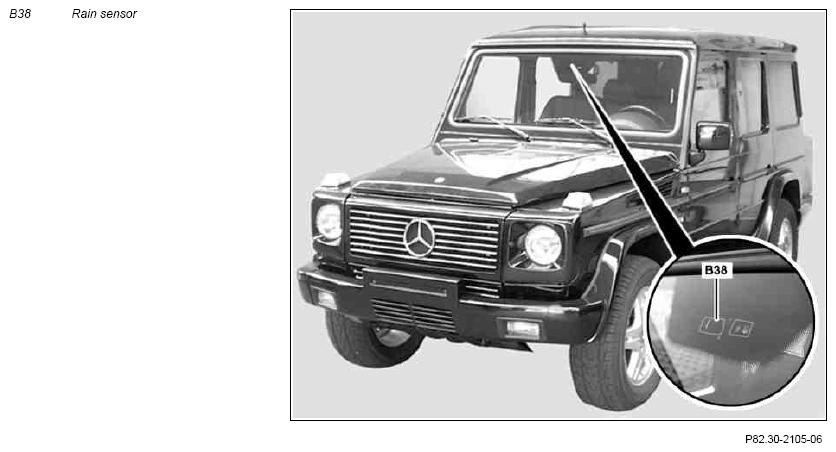

| Rain sensor, location | The rain sensor is glued onto the inside of the windshield in the area of the inside rearview mirror unit. | ||
| Rain sensor, purpose | The rain sensor (B38) measures the quantity of moisture on the windshield and controls the intermittent time of the wiper system. | ||
| Rain sensor, design | The rain sensor (B38) consists of an infrared transmitter and receiver unit and an electronic circuit which serves for evaluation and as interface. | ||
| Rain sensor, function | GF82.30-P-4103-02GA |
