O2 sensors, location/task/design/function - GF07.04-P-4103AM

ENGINE 113.990 /991 /993

ENGINE 113.992 /995 up to Model Year 8

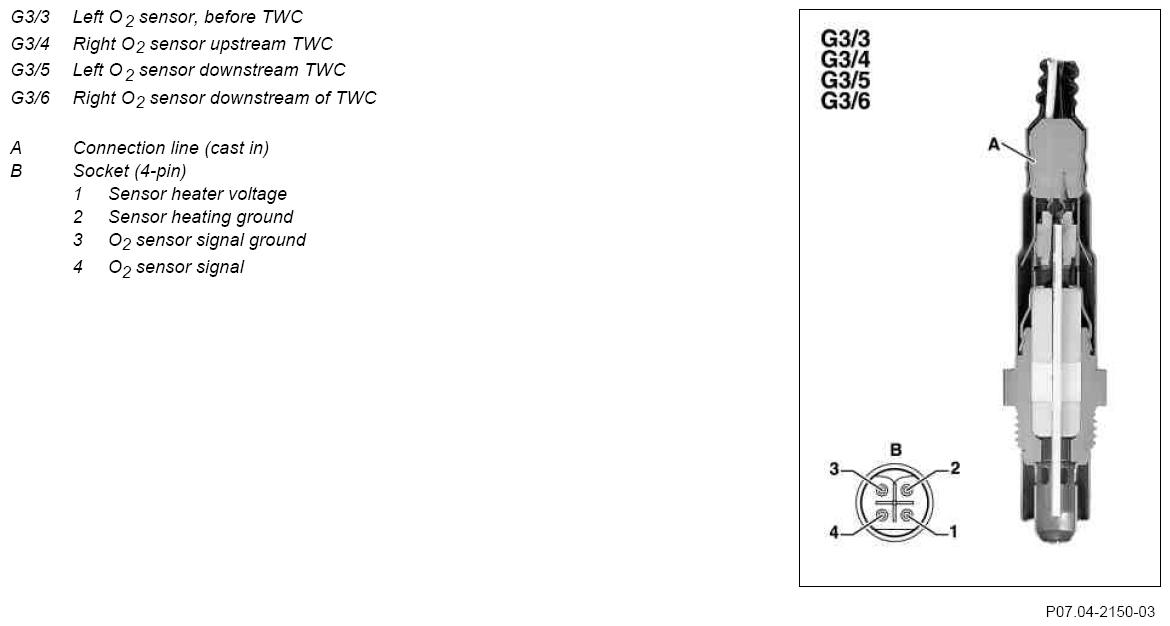

Fig 1: Identifying Left/Right O2 Sensors, Connection Line And Socket (4-Pin)
G07870861Courtesy of MERCEDES-BENZ USA
  O2 sensor, location   GF07.04-P-4103-02AM
  O2 sensor, task Detecting the residual oxygen content in exhaust gas and supplying it as a signal voltage to the ME-SFI [ME] control unit (N3/10).
O 2  sensor upstream of TWC (slave sensor):
  • Lambda control
  • Self adaptation of mixture formation
  • Function chain test

O 2  sensor downstream of TWC (master sensor):
  • Two-sensor control
  • Monitoring of the catalytic converter effect

  O2 sensor, design   GF07.04-P-4103-03AM
  O2 sensor, function   GF07.04-P-4103-01AM
