Left Front ESA Control Module (With Memory) Connector End View (N32/1)

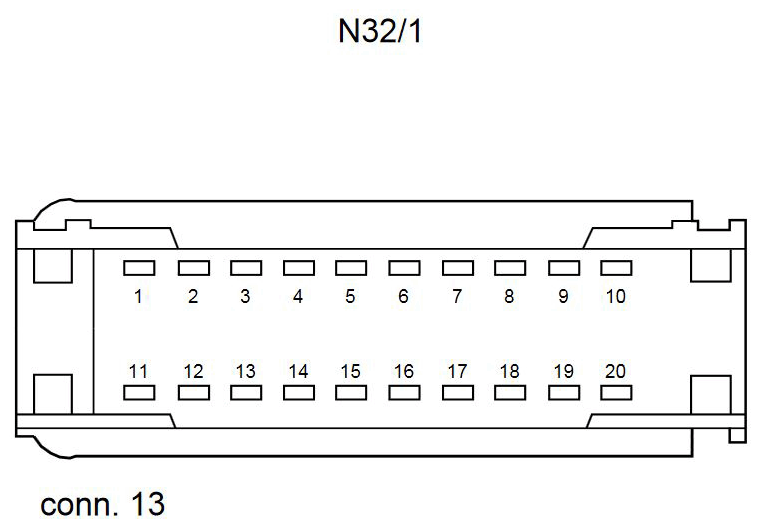

Fig 1: Left Front ESA Control Module (With Memory) Connector End View (N32/1)
G11074262Courtesy of MERCEDES-BENZ USA
